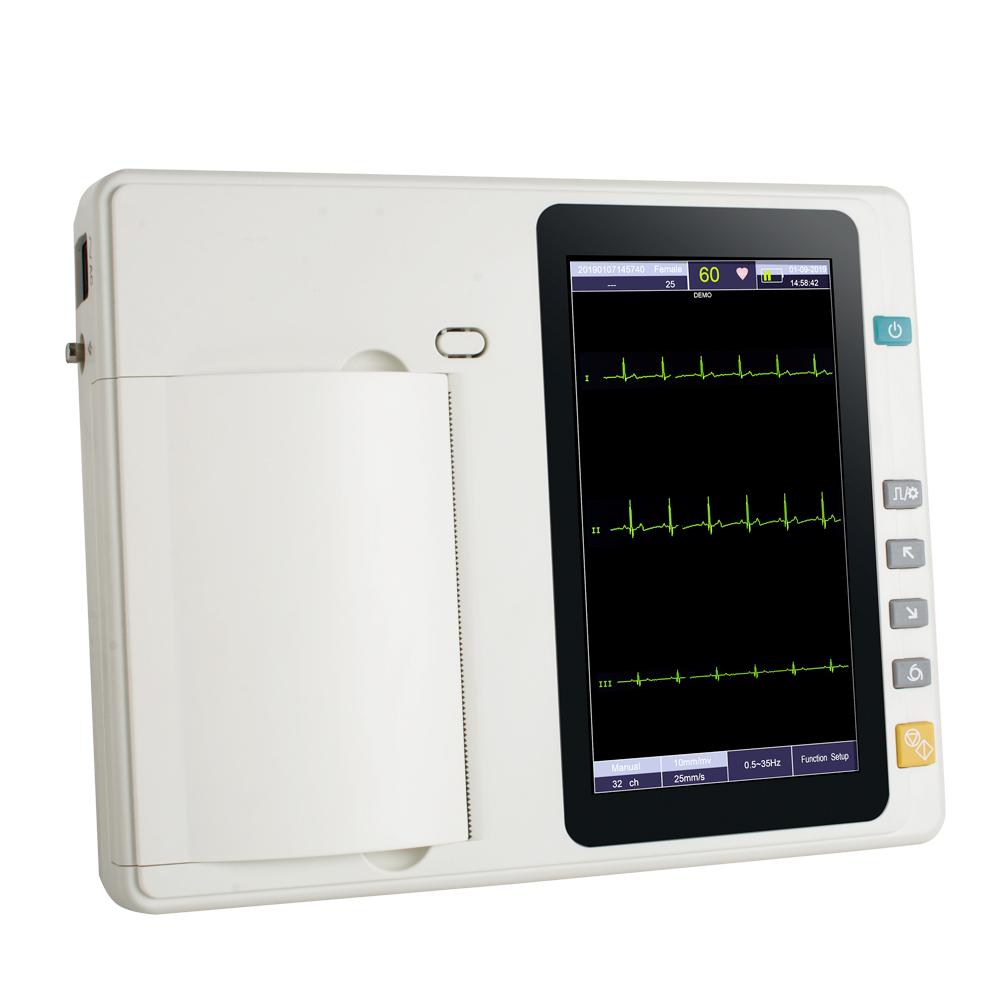

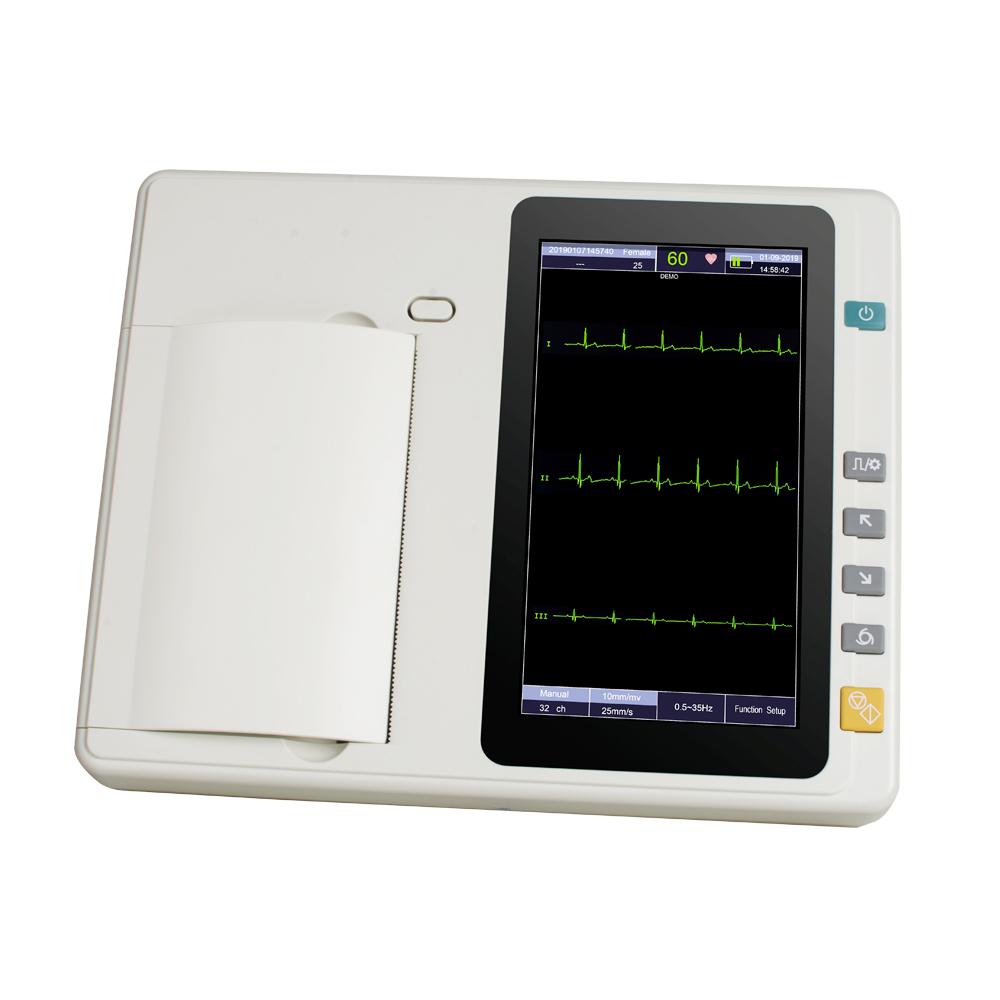

Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display

Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display

SKU: 600066-8674
Availability: In stock
$397.49
$397.49
Subtotal: $397.49
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display

Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display

$397.49
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display
Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display

Portable 3-channel ECG machine with 12 lead electrodes, 7-inch touch screen LCD and digital color display

$397.49
Description
Description
x

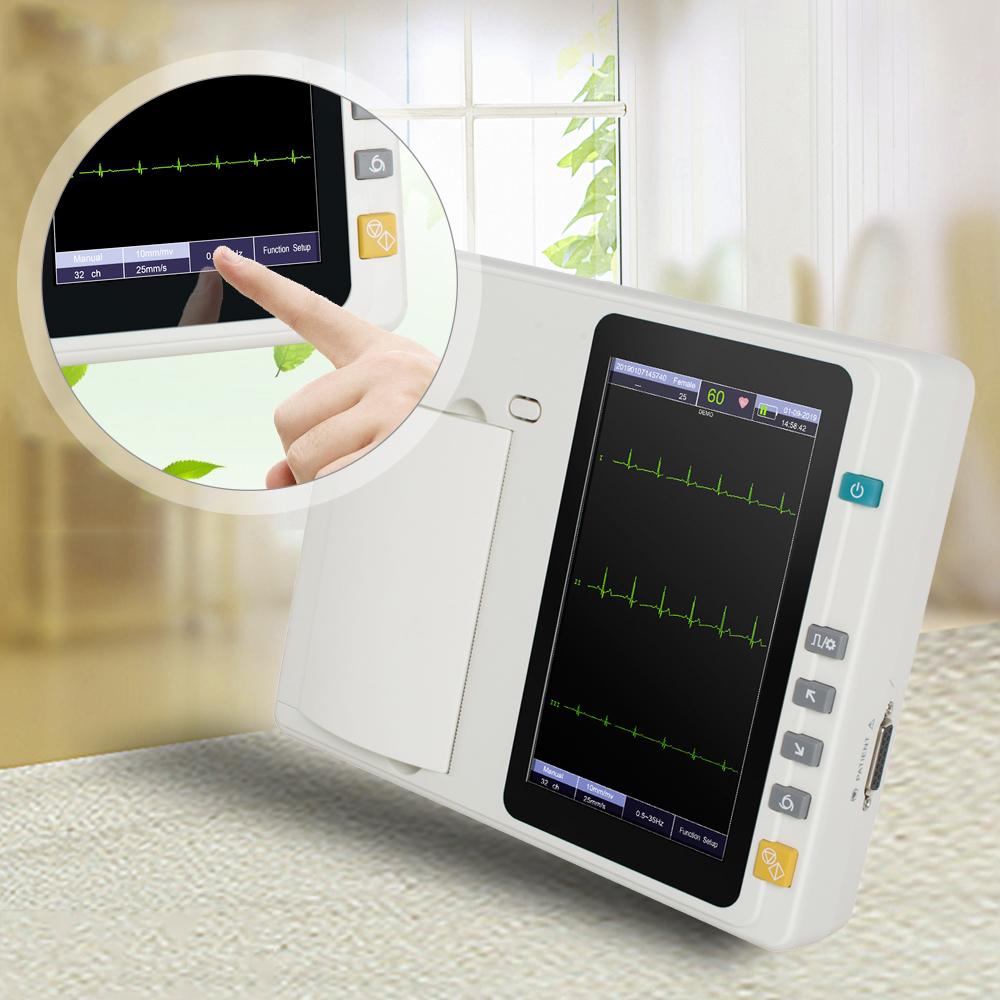

  • 7 inch graphic LCD display,touch screen and function key control at the same time, more convenient and shortcut.
  • Three channel ECG machine with interpretation
  • Auto-regulation of baseline drift can effectively inhibit baseline drift, optimizing the printing position to achieve high-quality ECG.
  • With automatically measuring and analyzing function for ECG parameters to reduces the doctor’s burden and improves work efficiency.

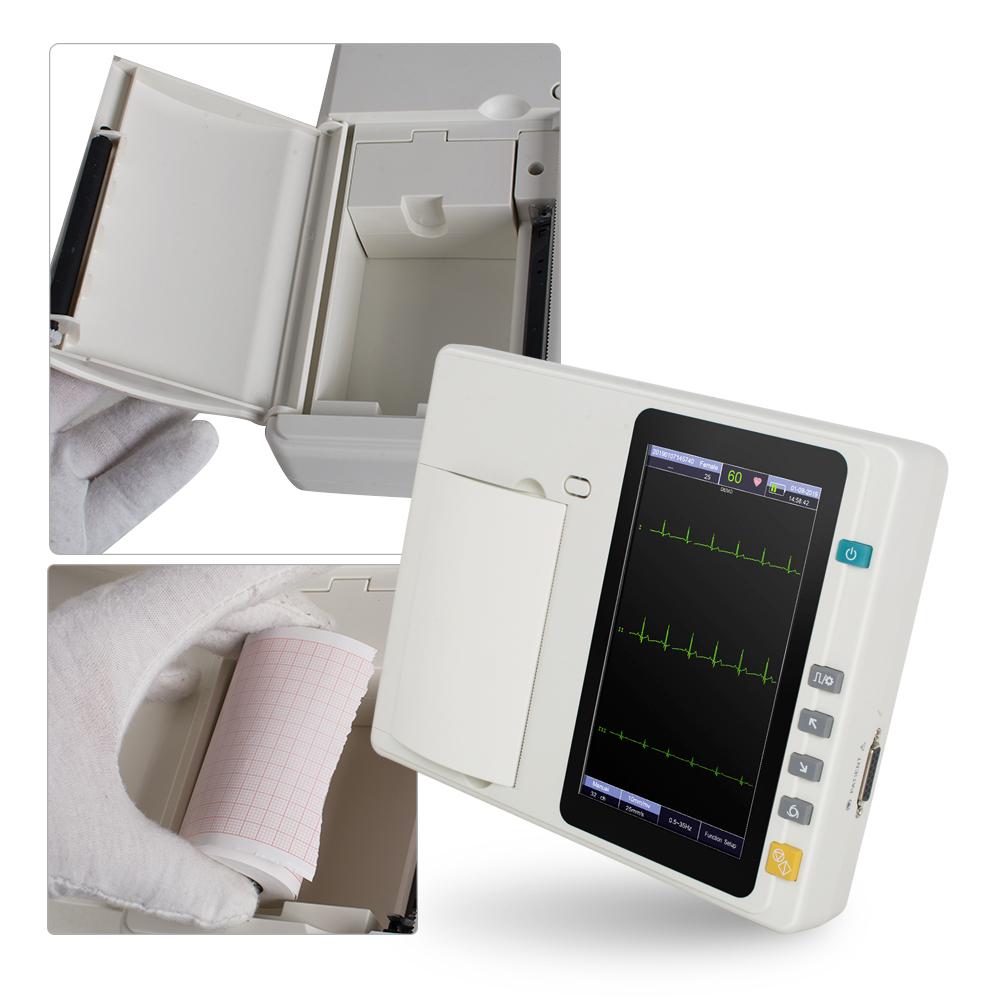

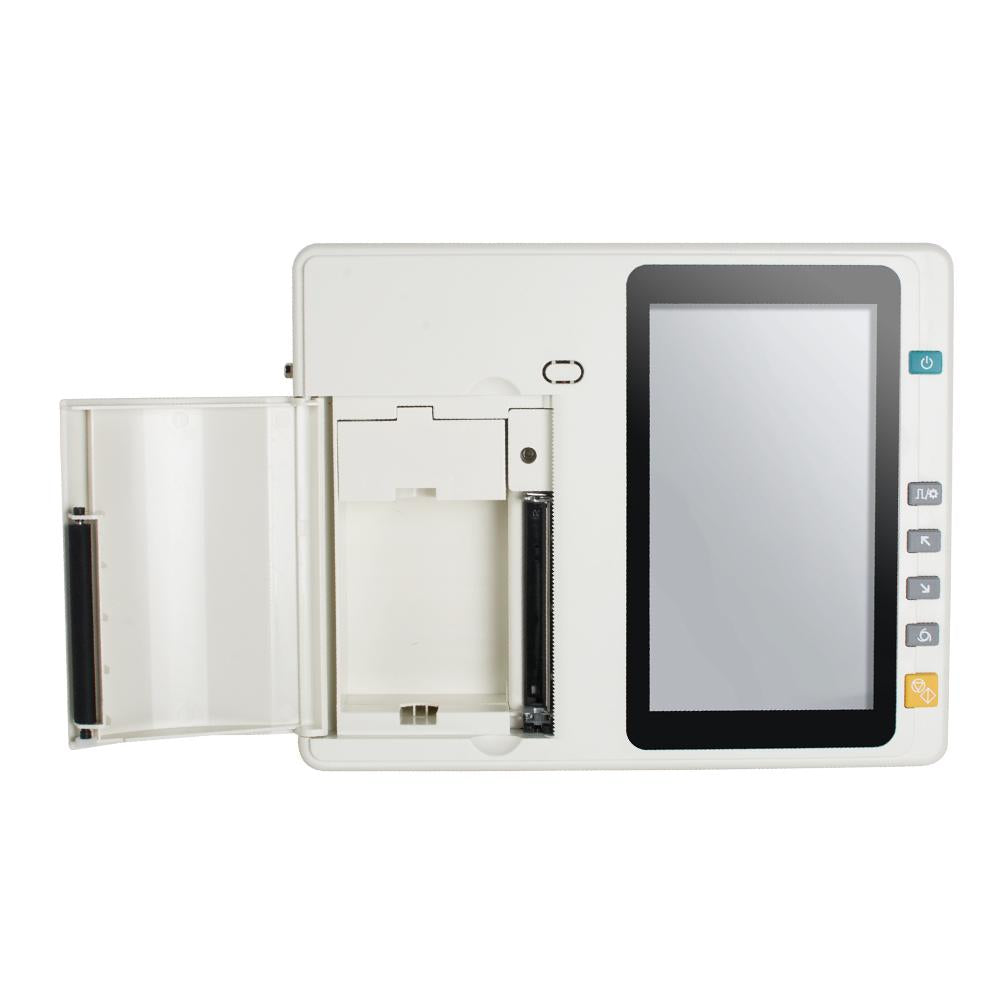

  • With a high resolution thermal printer to print out ECG trace,describing the trace clear and accurate,annotation as well as related parameters for diagnostic reference.
  • 12-lead ECG simultaneous acquisition.
  • Adapt 110-240V, 50/60Hz AC power supply.

Specifications:

Lead

standard 12 leads

lead acquisition

synchronously 12 leads

Input circuit

Floating; Protection circuit against Defibrillator effect

Input Impedance

≥50MΩ

Input circuit current

≤0.0.05μA

Record mode

Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2;

Manual: 3CH, 2CH, 3CH+1R, 2CH+1R;

Rhythm: Any lead selectable.

Filter

EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz

DFT Filter: 0.05 Hz/ 0.15 Hz

AC Filter: 50 Hz / 60Hz

CMRR

>100dB

Patient current leakage

＜10μA

Input Circuit Current

＜0.05µA

Frequency Response

0.05Hz~150Hz (-3dB)

Sensitivity

2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV

Anti-baseline Drift

Automatic

Time constant

≥3.2s

Noise level

＜15μVp-p

Paper speed

12.5 mm/s, 25 mm/s, 50 mm/s

Recording mode

Thermal printing system

Paper specification

80mmx20m paper roll

LCD display

7” graphic LCD

Safety classification

IEC60601-1 class I, type CF

Power supply

AC: 100~240V, 50/60Hz, 30VA~100VA



DC: 14.8V/2200mAh, built-in lithium battery

Fuse

AC220V±10%  2*Φ5×20mm,T2A/250V  AC time lag



AC110V±10%  2*Φ5×20mm,T4A/250V  AC time lag

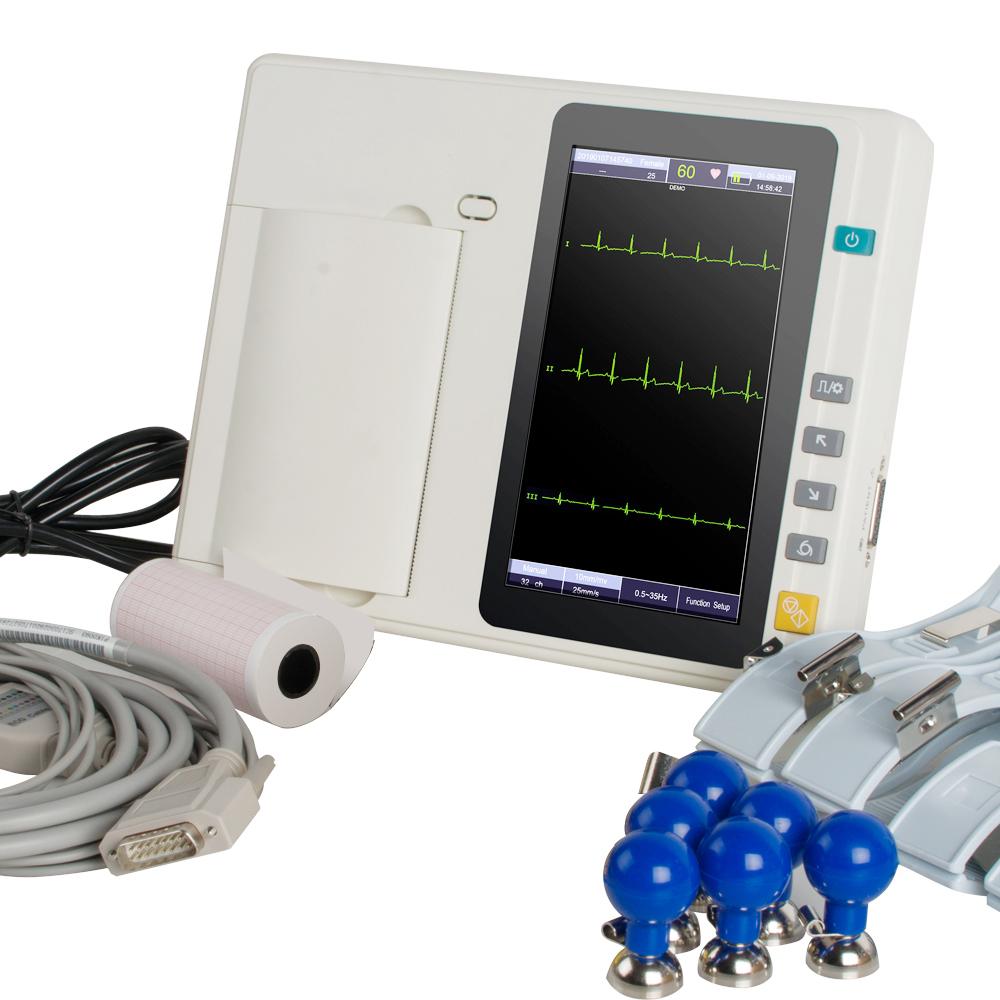

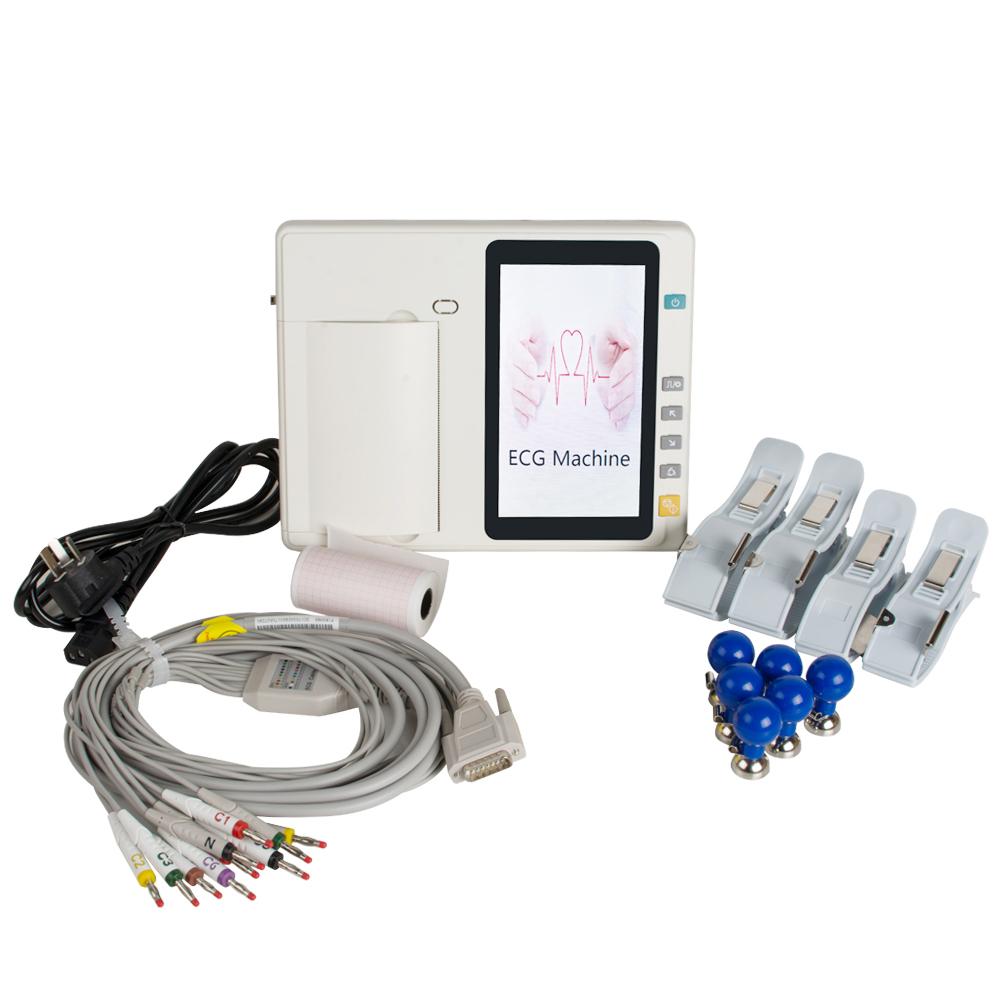

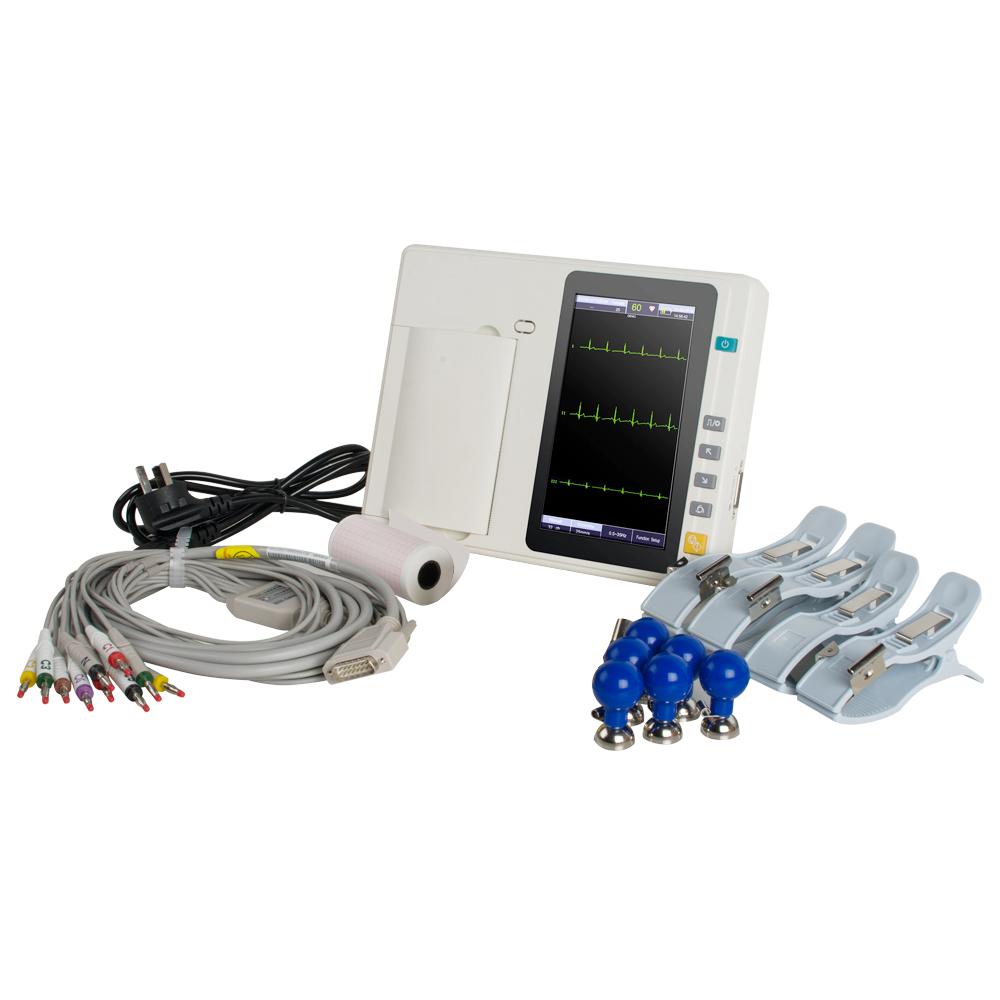

Package List:

ECG Machine×1

ECG Lead Wire×1

Limp Clip×4

Chest Suction Ball×6

Electrodes Sheet x6

Thermal Printing Paper×1

Fuse×1

Power Cable×1
