Description

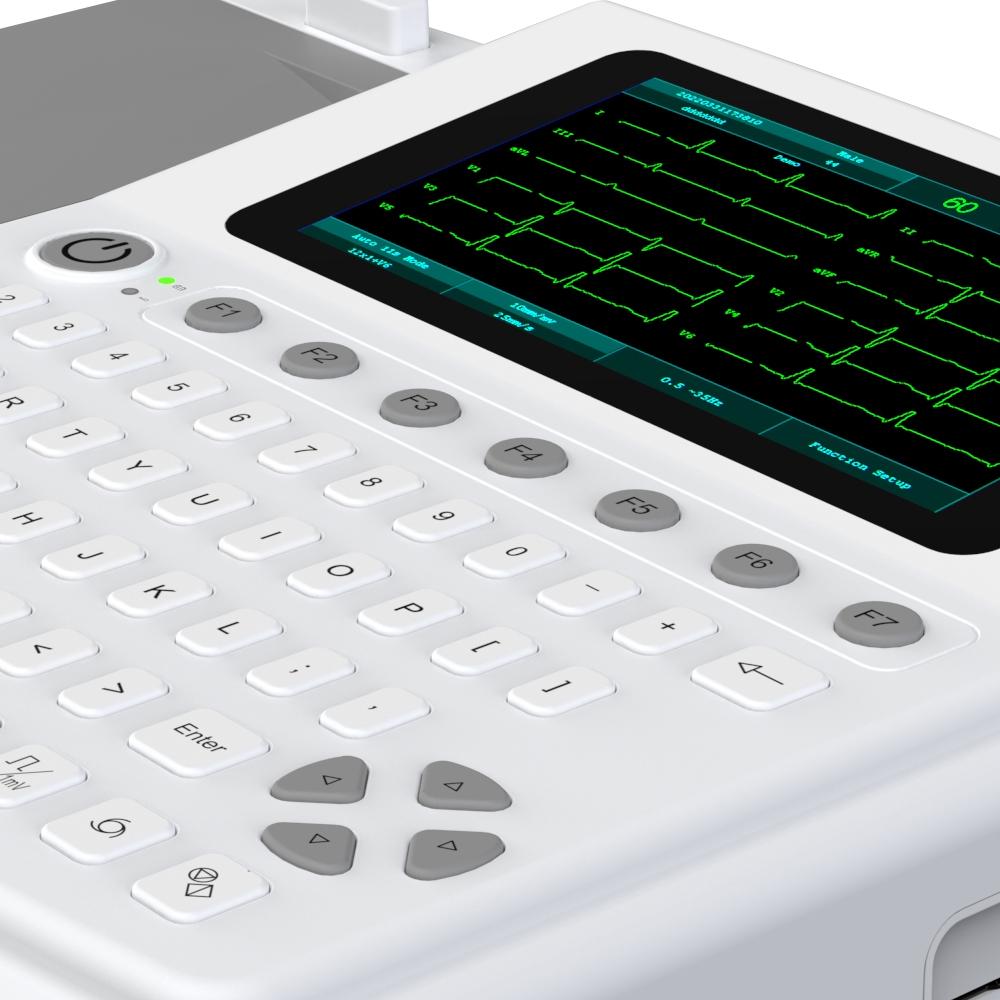

x- Adopt 7 inch high resolution color touch screen.
- Full alphanumeric keyboard with shortcut keys, efficient in operation.
- Simultaneous 12 leads ECG acquisition and display.
- Automatic ECG measurements and interpretation.
- Built-in memory stores up to 1000 cases, convenient for case review and statistic.
- Built-in rechargeable lithium high capacity battery for mobile use.
- Built-in thermal printer, support multiple printing modes and formats.
- Support USB flash disk and micro SD card to extend memory.
- ECG data can be transmitted to PC via USB.ECG reports can be saved,opened, in PC via ECG playback software.

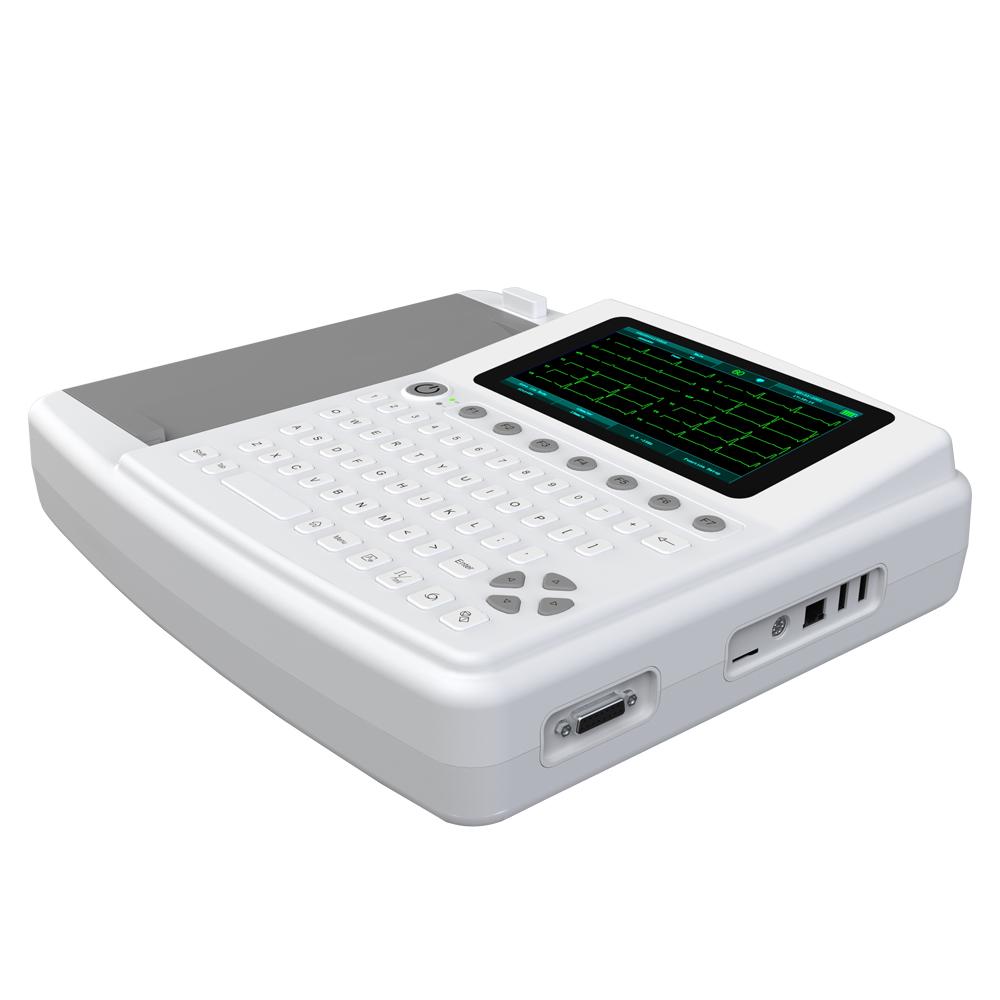

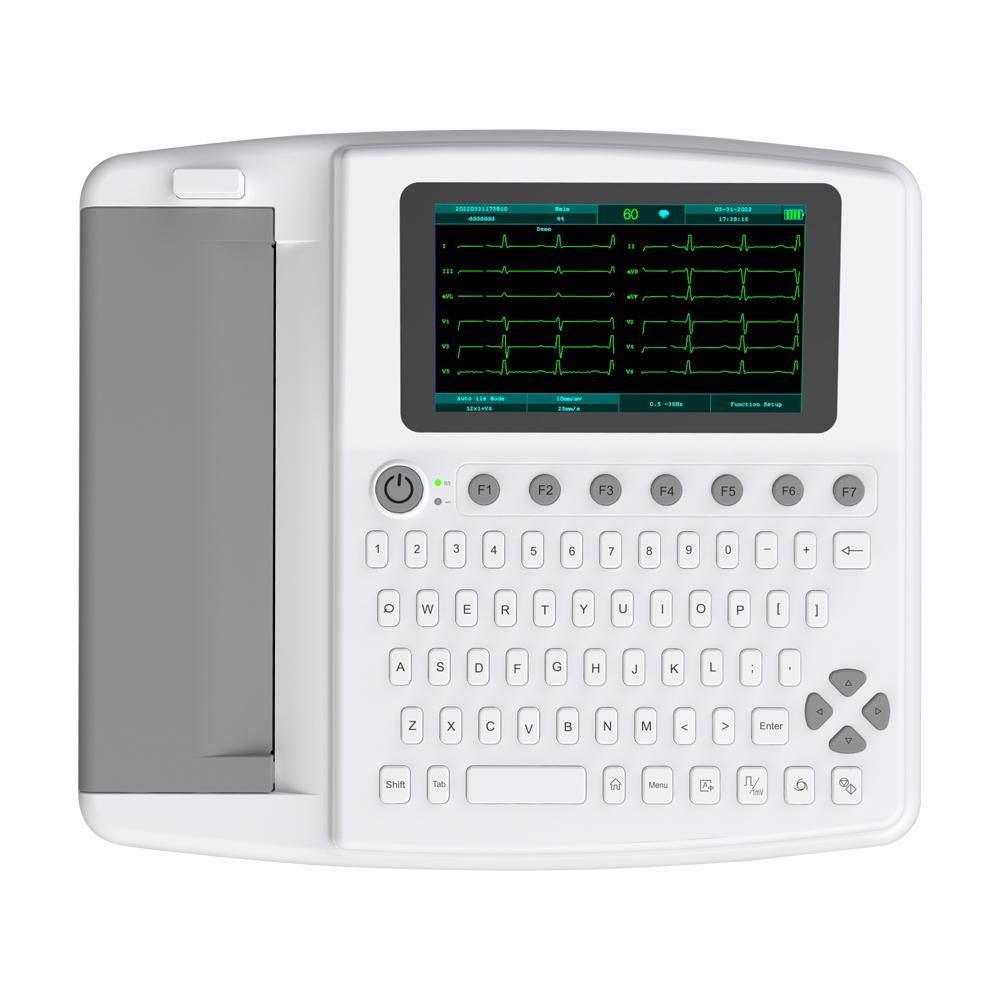

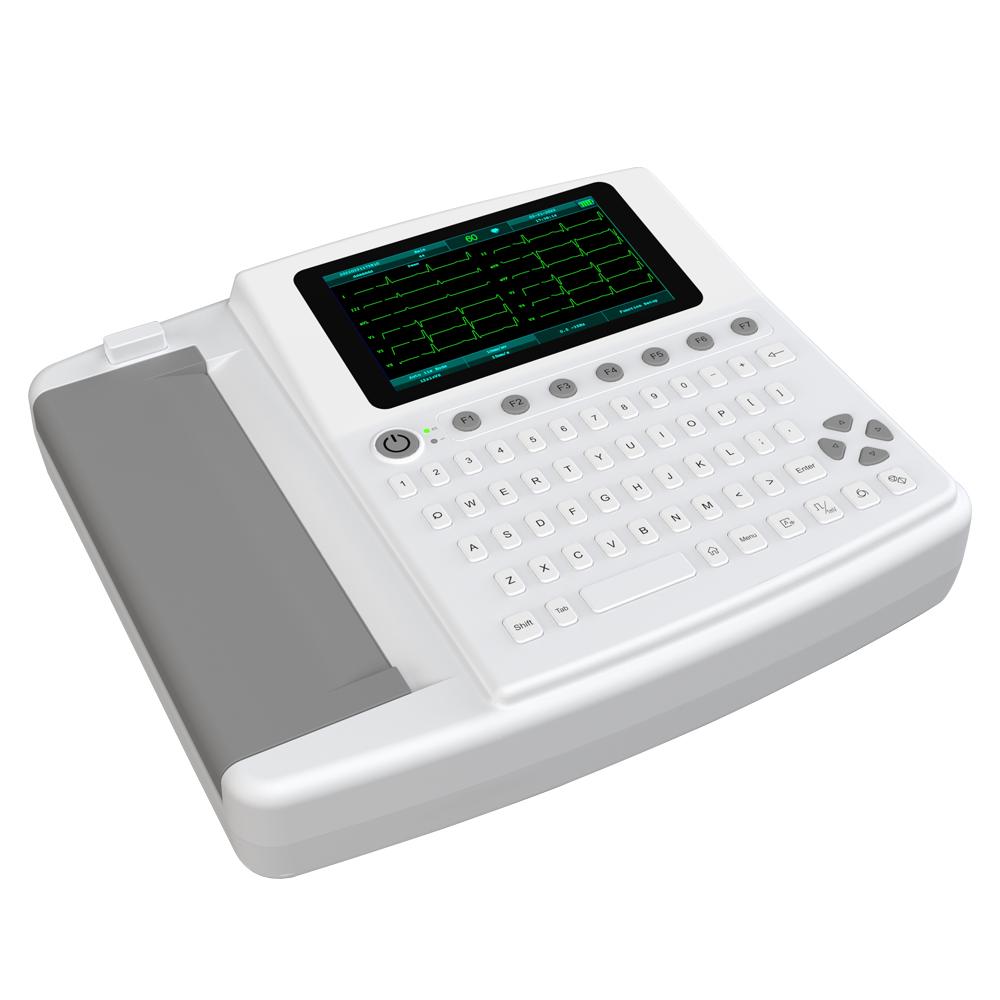

The device is an electrocardiograph,offers an intuitive,easy-to-use interface,a bright color display and touch operation.which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system.It is an idea option for practice and clinic.
Parameter:
|
Lead |
Standard 12 leads |
|
Sampling mode |
Simultaneous 12 leads acquisition |
|
Sampling rate |
1000Hz |
|
A/D Converter |
24bits |
|
Frequency response |
0.05～160Hz (-3db) |
|
Operation mode |
Manual, Auto, Rhythm, 1 channel 1 minute |
|
Filter |
AC Filter: 50 Hz / 60Hz EMG Filter: 25 Hz / 35 Hz / 45Hz/75 Hz / 100 Hz / 150Hz DFT filter: 0.05Hz/0.5Hz |
|
CMRR |
≥100dB (add AC filter) |
|
Input mode |
Floating and defibrillation protection |
|
Input Impedance |
≥50MΩ (10Hz) |
|
Input circuit current |
≤0.05μA |
|
Input dynamic range |
±10mVp-p |
|
Patient leak current |
＜10μA |
|
Calibration voltage |
1mV±2％ |
|
Polarizing voltage |
≥±300mV |
|
Time constant |
≥3.2s |
|
Paper specification |
210mm (W)*30m(L) |
|
Recording mode |
Thermal printing system |
|
Noise level |
＜15μ Vp-p |
|
Memory |
1000 cases |
|
Threshold |
≤20μV |
|
Wave Gain/Sensitivity |
2.5mm/mV，5mm/mV，10mm/mV，20mm/mV (standard sensitivity: 10mm/mV) |
|
Wave/ Paper speed |
12.5mm/s,25mm/s,50mm/s（±3％） |
|
Machine Dimension |
365.4*323*85 mm |
|
Weight |
2600g (not including the paper) |
|
AC |
100V~240V(50/60Hz) |
|
DC |
14.4V, 2500mAh, 36.00Wh (Built-in rechargeable Li-ion battery) |
Packing List:
Electrocardiograph ×1
Lead Cable×1
Chest Electrodes × 6
Limb Electrodes ×4
Power Cable ×1
Grounding Cable ×1
Thermal Recording Paper ×1
