LCD Display IP-50 Infusion Pump Fluid Equipment With Audible and visual Alarm 50/60Hz

SKU: 100117



Audible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting etc, which gain patents

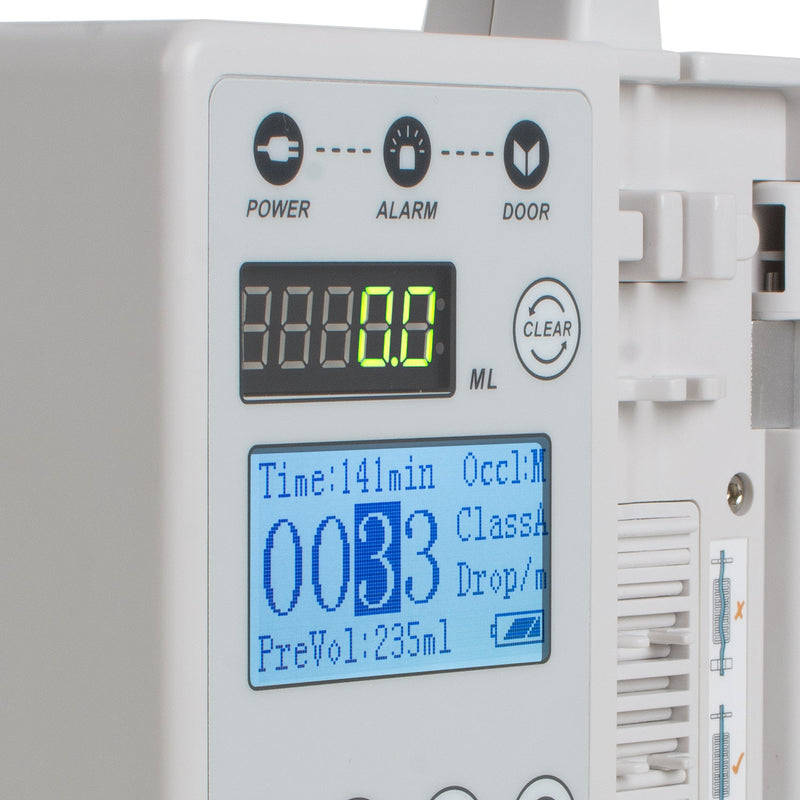

HD LCD Display, high capacity words, friendly user interface, dynamically display working status

Compatible with any brand of infusion sets after correct calibration

Preset Solution Volume to greatly reduce the workload of nurses

Work mode: ml/h and drop/min can switch freely

Three levels of occlusion: high, middle and low

Purge function

KVO: KVO (keep-vein-open) automatically opens as infusion is completed.

Power Source: AC100-240V, 50/60Hz; Internal Battery

Automatically record the settings of last infusion can be available per customers' request

language: English, Poland, Latvian, Russian etc.

1. Infusion Rate 0.1ml/h---1200ml/h (1ml/h step ,input 016 when set the rate from 800 to 1200ml/h)
2. Rate Accuracy within±5% (after correct calibration)
3. Purge Rate 100ml/h---1200ml/h(can be calibrated)
4. Volume Limit 0ml---9999ml   Total Infusion Volume  0---9999.9 ml
5. Alarm Pressure High:800mmHg±200mmHg(106.7kPa±26.7kPa)
6. Alarms : end of injection, occlusion, door open, bubbles in the tube, wrong setting,
                            low battery, AC power pulled out etc
7. Power source 100V---240V  50/60Hz
8. Internal rechargeable Li battery volume≥1,600mAh
    4 hours internal battery backup
9. Bubble Detector ultrasonic wave detector, detection sensitivity ≥25μL
10. KVO Speed 1ml/h---5ml/h (1ml/h step)
11. Power Consumption 15VA
12. Operation Environment Temperature  +5----+40 degree
                                            Relative Humidity  20----90%
                                            Storage Temperature  -30-----+55 degree
                                            Humidity   ≤95%
                                            Atmospheric Pressure  50.10KPa----106.0KPa
13. Weight 1.8kg

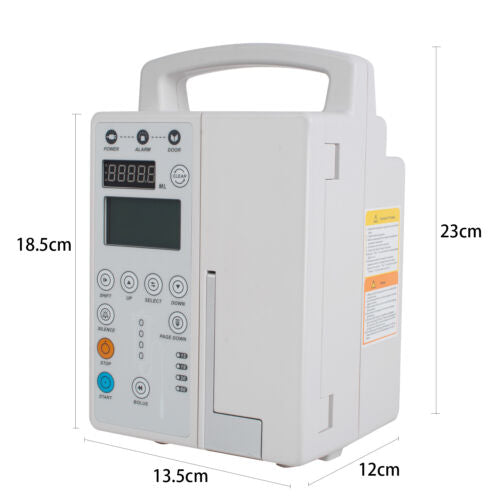

14. Dimension 140mm (L)x 157mm (W)x 220mm (H)
15. Infusion set brand Compatible with any brand
16.Forbidden Not support blood Infusion

17. Package 1pc per each Carton, 2.8KG; 24cm (L) x 26cm (W) x 31cm (H)
                     2pc per each Carton, 5.8KG; 52cm (L) x 30cm (W) x 36cm (H)
                     3pc per each Carton, 9KG; 76cm (L) x 30cm (W) x 36cm (H)
