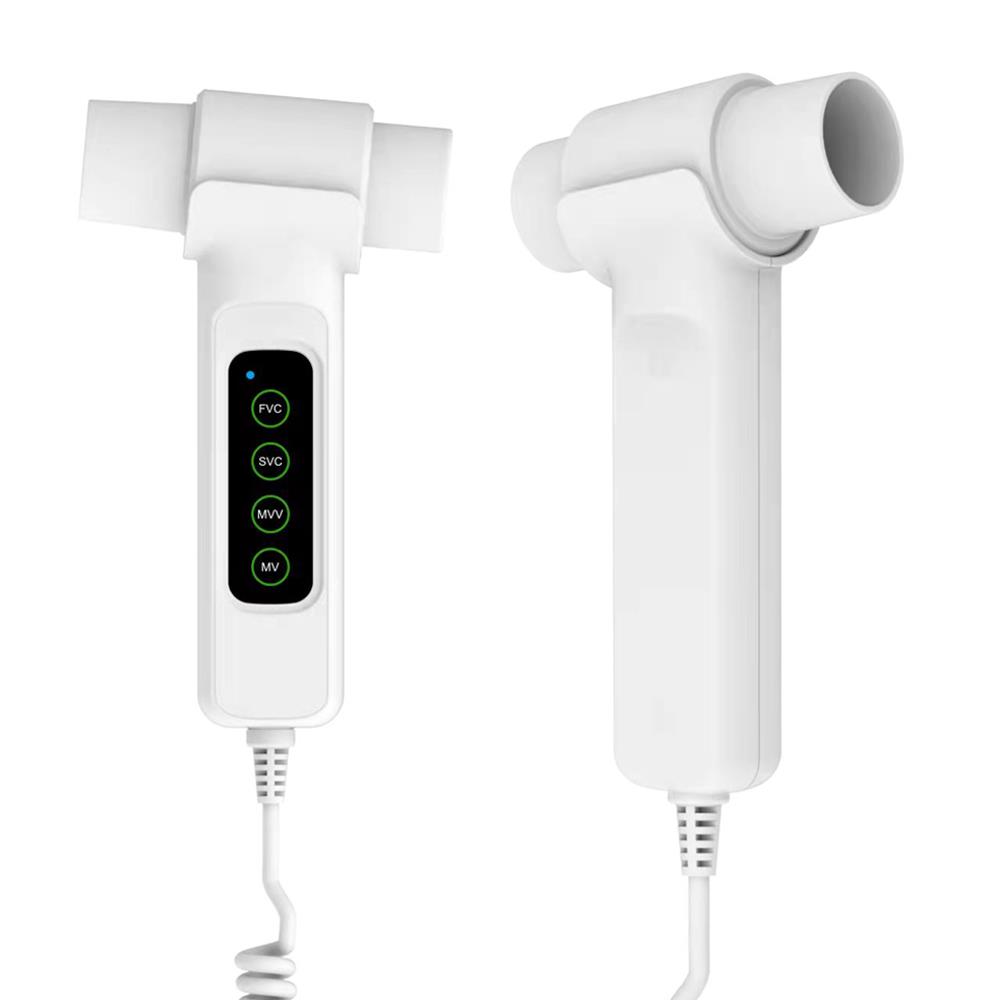

Digital SPM-D Handheld Spirometer Digital Checking Lung Conditions+PC Software

SKU: 620000207225-1820




Spirometer SPM-D is a pulmonary function test equipment, equipped with professional pulmonary function software, used to detect the respiratory function status of patients; using the principle of differential pressure collection, it can perform forced vital capacity FVC, vital capacity SVC, maximum minute ventilation MVV, Measurement of resting minute ventilation MV and related parameters, real-time display of respiratory waveform, suitable for diagnosis and efficacy evaluation of lung diseases such as asthma, chronic obstructive pulmonary disease, pulmonary fibrosis and cough, preoperative safety evaluation, routine physical examination, etc. It is mostly used in multiple scenarios such as respiratory medicine, thoracic medicine, anesthesiology, surgery, occupational disease prevention and control institutions, and physical examination institutions.


 1) It can measure and display more than 100 basic parameters related to forced vital capacity FVC, vital capacity SVC, maximum minute ventilation MVV, and resting minute ventilation MV;

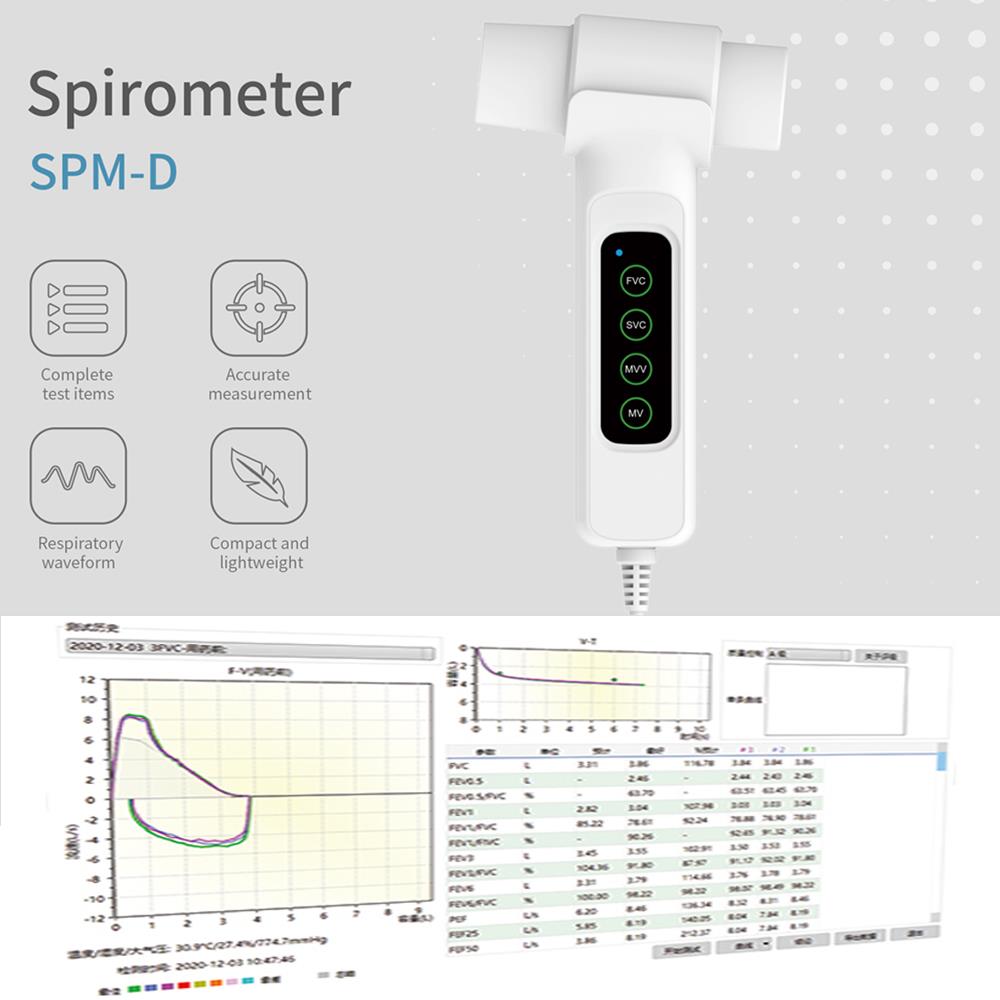

 2) It can display trend graph, test breathing waveform, and intelligently recommend the optimal test curve;

 3) It has the management function of user information and case data;

 4) Built-in multiple expected values, which can be set manually;

 5) With BTPS self-correction function, automatic measurement of environmental parameters;

 6) With the function of pulmonary function assessment;

 7) Support bronchial test;

 8) Calibration function and quality control to ensure test accuracy;

 9) It has the function of quality control, and intelligently recommends test curves with high acceptability;

10) With report generation, editing and printing functions;

 11) One-key quick start test function;


Capacity range: 0 ~ 10 L

Flow rate range: 0 L/s ~ 16 L/s

Volume accuracy: ±3% or ±0.05 L (whichever is greater)

Flow rate accuracy: ±5% or ±0.17L/s (whichever is greater)


1 manual

1 nose clip

1 mouthpiece (disposable accessory)

PC software

Physical characteristic

Dimensions: 143mm (length) × 84mm (width) × 41mm (height)

Weight: 130g
