Description

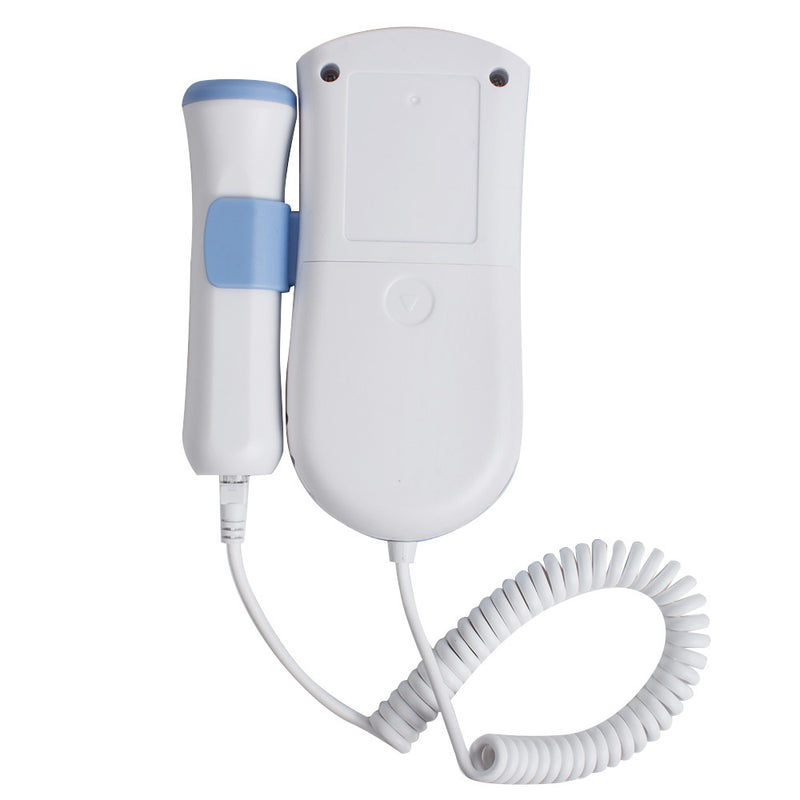

Our fetal Doppler is a hand-held and pocket fetal heart rate monitor. It can detect and listen to the fetal heartbeat,and then review and share tracking records via APP.(the free APP"Carejoy'' can download from Apple Store)
It is a new-generation fetal doppler with free App. which can be used in hospital, clinic and home for daily self-check by pregnant woman.The fetal doppler is equipped with a full high definition color LCD display.
Features:
Beautiful shape,portable,easy operation
Easy-to-use,the probe can be changedAccurate FHR detection with clear sound.
High sensitivity interchangeable probe.
Battery status indicator.
Dual display Interface:Digital display interface, Curve display interface
High accuracy, curve display interface, can see the fetal movement curve.
Specification:
Standard: EN61266:1995
Safety Classification: BF /Class Ⅱ /Internal power
Overall Sensitivity: ≥ 90 dB (Integrated sensitivity 200mm away from the surface of the probe)
Measuring integrated sensitivity
The Doppler frequency :(300 ± 50) Hz
Reflecting target speed:10cm / s ~40cm / s
Ultrasound transducer’s effective area: 6.0±0.5cm2.
Target velocity and display range : No narrower than 50bpm-240bpm (± 2bpm). (Beat Per Minute) (Notes: Please go to see a doctor once the FHR is abnormal) Output power: ≤10Mw/cm2
EMC testing data (See annex Ⅱ)
Working frequency:3.0 MHz ± 10%
Spatial-peak temp-peak acoustic pressure:≤ 0.1 MPa. Effective area of transducer:6.0±0.5 cm2
Physical Characteristic:
Working environment: Temperature: +5 ℃ ~ +40 ℃
Humidity: ≤ 80% Atmospheric pressure: 86kPa ~ 106kPa
Transport and storage environment:
Atmospheric pressure: 86kPa ~ 106kPa,well-ventilated room without corrosive gases.
Battery: Two pieces of 1.5V battery(not include)
Size:135mm (Length) ×65mm (Width) ×30 (Height) mm
Weight: 176g(without batteries)

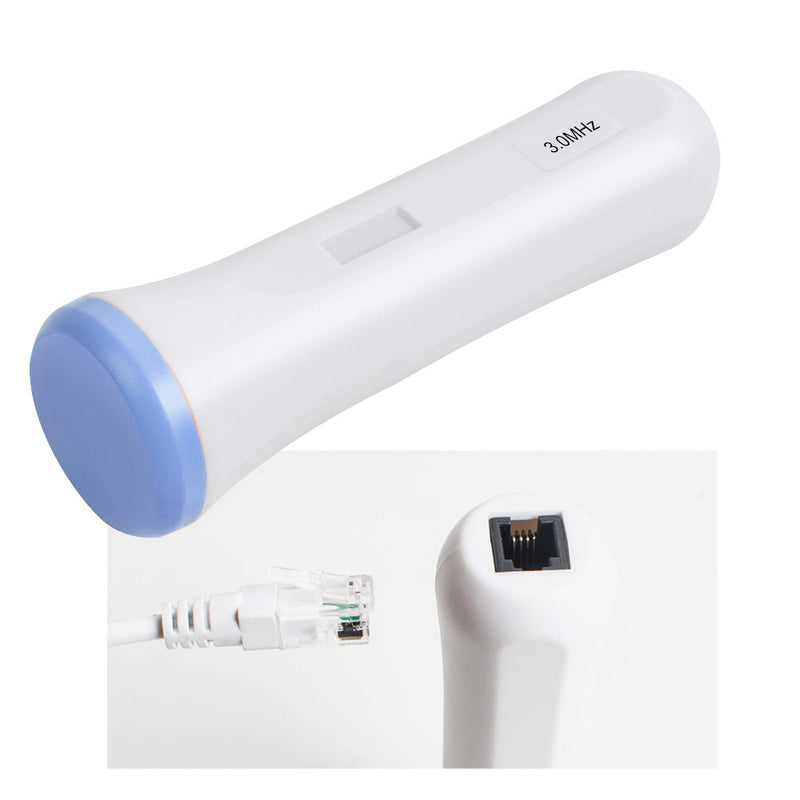

Probe:
Working Frequency:3.0MHz
P-: ≤1MPa
Iob≤20mW/cm2
Ispta≤100mW/cm2
Packing Include:
1 x Color LCD Fetal Doppler
1 x English user's manual
Note:
The free APP"Carejoy” only for IOS system.
