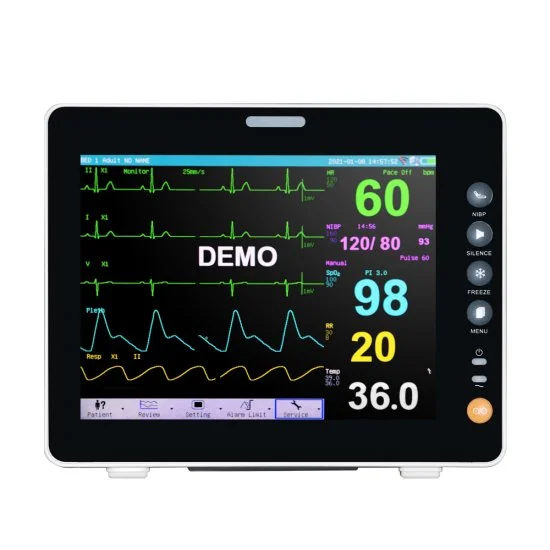

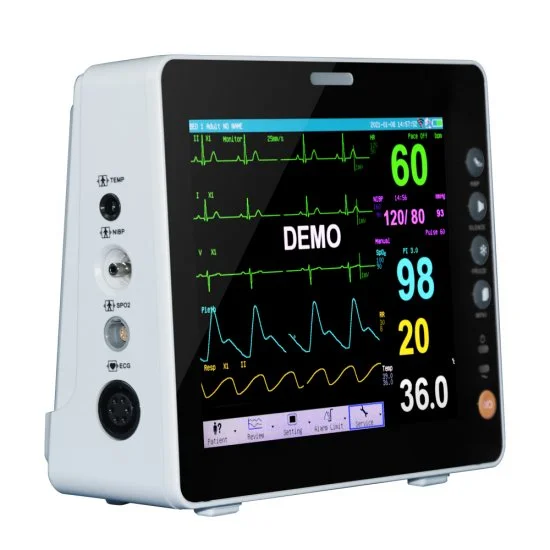

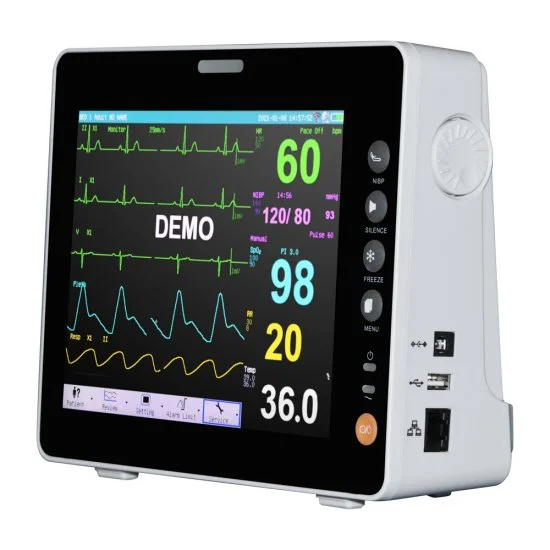

8 Inch Multi-parameter Monitor ICU Dental Patient Monitor LCD Screen ECG NIBP SPO2 TEMP RESP

SKU: 800204



Package Include:

  1. 1×Dental Patient Monitor
  2. 1×Cuff for adult

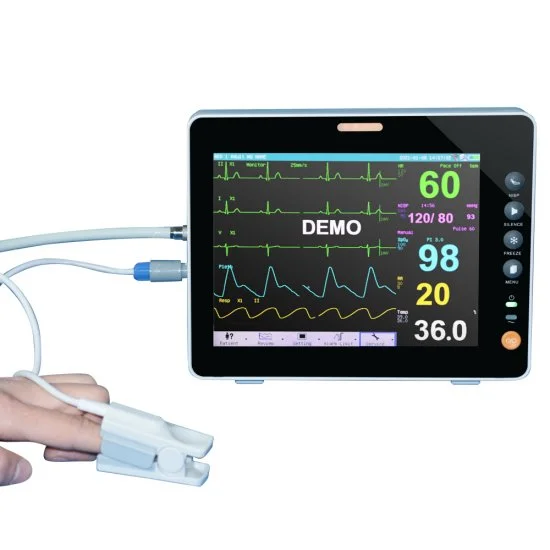

  3. 1×SpO2 Probe
  4. 1×5 lead EKG Cable
  5. 1×Temperature Probe For ECG monitor
  6. 1×User Manual
  • Real-time Vital Sign Monitoring: Ensures patient safety during surgery.
  • Accurate Measurement: Vital for patients with cardiovascular, cerebrovascular diseases, and diabetes.
  • Continuous Observation: Keeps track of life signs, ensuring patient stability.
  • Trusted Support: Reliable basis for successful oral implant surgeries.


  • High brightness and high resolution display 8 inch color LCD screen ,more comfortable glare
  • 7-Channel ECG Waveform display,5 minutes ECG waveform playback, automatic detection of ST segment
  • 384 hours trend data memory for all the parameters and dynamic waveform capture
  • Can be arbitrarily set the alarm limit, automatic sound and light alarm
  • Anti-movement, anti-defibrillation, anti electrosurgical interference

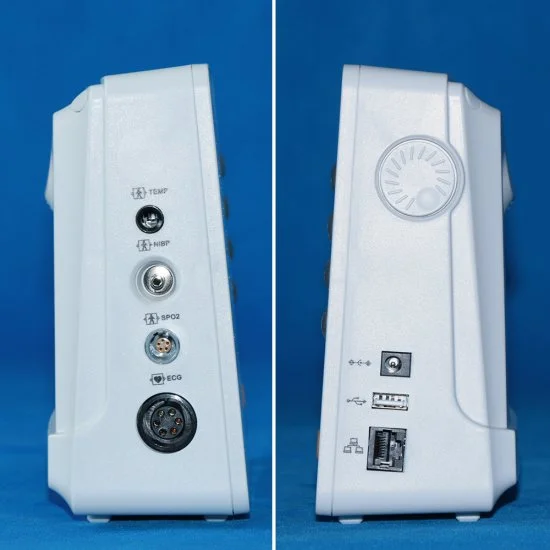

  • Remote central monitoring network interface
  • Drug solubility calculation function, Arrhythmia analysis function
  • Built-in lithium battery, AC and DC, can provide long-term monitoring after power failure
  • Widely used in the Department of internal medicine, Dntal practices (both pediatric and adult), oral surgery centers surgery, operation room,obstetrics and Gynecology, pediatrics, emergency center, ICU, CCU.
  • Standard configuration:

Technical parameters:

ECG Measurement:
Leads choices: All, I, II, III, aVF, aVR, aVL. V1--6 chest leads showed
Gains options: × 1, × 2, × 4, and × 0.5 four trenches
diagnosis 0.05 ~ 130Hz
Monitoring 0.5 ~ 40Hz
Operation 1~ 20Hz
Common-mode signal inhibition:
diagnosis > 90 dB
Monitoring > 100 dB
Operation > 100 dB
Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.
HR range:
Adult :15 ~ 300bpm
Infants / children: 15 ~ 350 bpm
HR Accuracy: ± 1 bpm
Precision calibration signal: 1mv(peak, ± 5% accuracy)
ST Detection: measurement range (-2.0mV~+2.0mV)
Baseline recovery time: < 3 seconds after defibrillation
Alarm: Sound and Light
Preset heart rate range: (Alarm over preset numerical)
Ceiling:40~255 bpm adjustable
Threshold: 20~160 bpm adjustable
RESP Breath:
Breathing frequency range:
Adult : 7~120 brPM
Infants / children:7~150 brPM
Accuracy:± 2brpm
Gains options: × 1, × 2, × 4, and × 0.5 four trenches
Alarm: Sound and Light
Alarm range: (numerical preset alarm over)
Ceiling: 10~100 bpm adjustable
Threshold: 0 ~99 bpm adjustable

NIBP measurement:
Technology: Oscillometric
Mode: Manual / automatic / continuous
Measurement units: mmHg / kpa
Protection: Double security protection
Scope: Pressure Cuffs 0-250 mmHg
Overvoltage protection: Double safety protection
Adult Pattern:300 mmHg
Children Pattern:240 mmHg
Newborn Pattern:150 mmHg
Blood pressure measuring range:
Systolic blood pressure: 40~270 mmHg
Diastolic blood pressure: 10~215 mmHg
Pressure on the average: 20~235 mmHg
Systolic blood pressure: 40~200 mmHg
Diastolic blood pressure: 10~150 mmHg
Pressure on the average: 20~165 mmHg
Systolic blood pressure: 40~135 mmHg
Diastolic blood pressure: 10~100 mmHg
Pressure on the average: 20~110 mmHg
The accuracy of blood pressure:The maximum average error amp 5mmHg; maximum standard deviation 8mmHg
Alarm: Sound and Light
Preset range: report (Numerical exceed preset alarm)
Systolic blood pressure maximum: 40~250 mmHg adjustable
Threshold: 10~220 mmHg adjustable
Diastolic blood pressure ceiling: 20 ~250 mmHg adjustable
Minimum standards: 10 ~220 mmHg adjustable
Spo2 measurement
Range: 70~00%:±2DIGIT 0~69%:Not defined
Resolution: 1%
Pulse frequency: 20~300 times / min
Alarm: Sound and Light
Preset range: report (Alarm over preset numerical)
Ceiling: 20% ~ 100% adjustable
Threshold: 10% ~ 99% adjustable

TEMP measurement:
Technology: thermostat temperature probe
Measuring range: 0°C~45°C
Temperature resolution: 0.1%
Accuracy: ± 1°C
Response Time: 1s
Alarm: Sound and Light
Preset range: report (numerical preset alarm over)
Maximum: 20.1°C~45 ° C adjustable
Threshold: 20°C~44.9°C Adjustable

AC power supply: AC 220V, 50Hz. 1A maximum current
Temperature: 5~40°C
Storage temperature: -20°C~40°C
Working humidity: ≤85% relative humidity, non-condensing
Humidity storage: ≤95% relative humidity, non-condensing
Altitude: 86~4106kpa feet (working condition)
Whole Power: not more than 70VA
