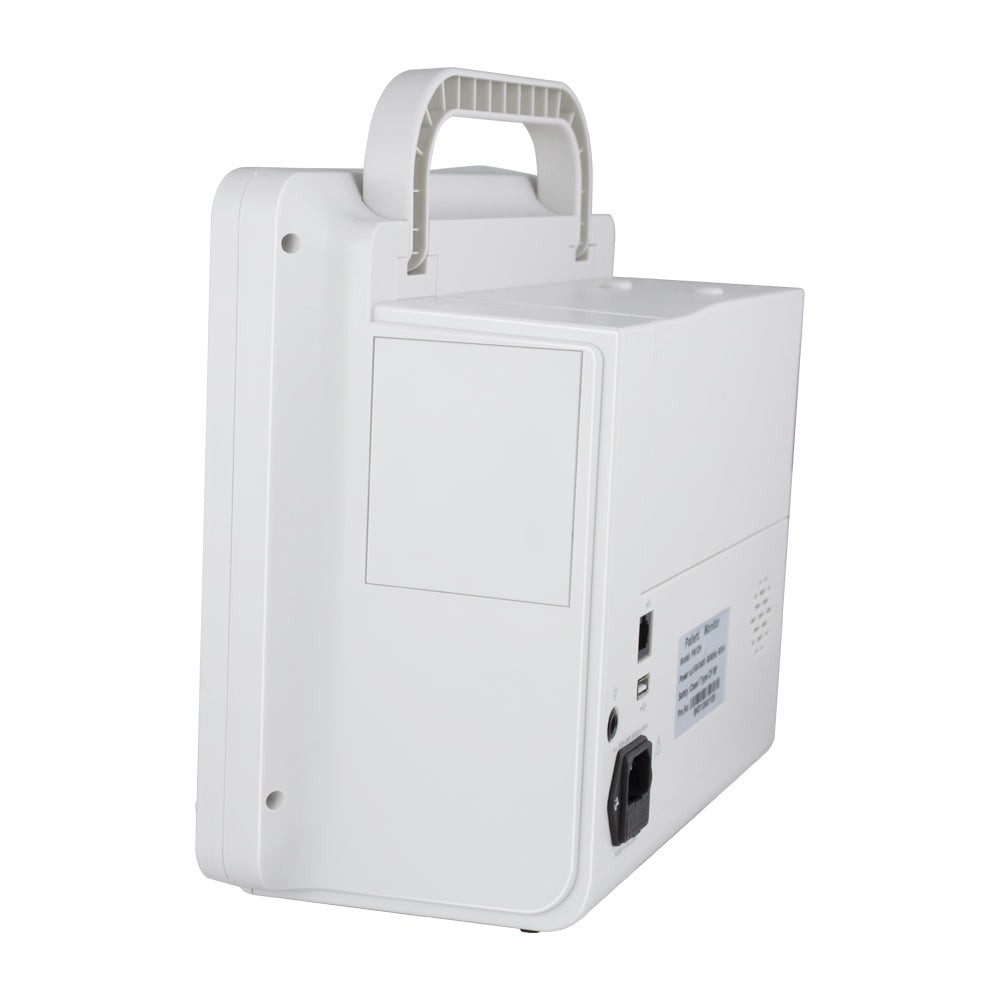

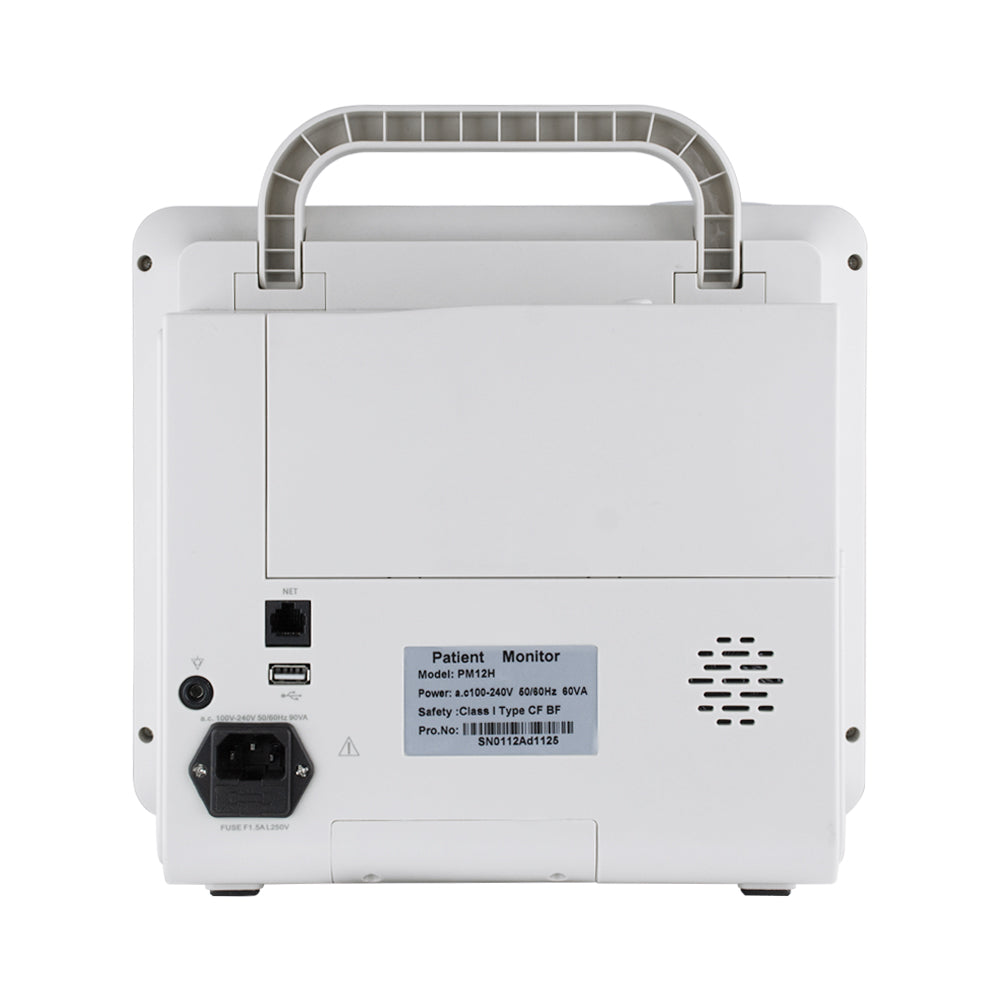

(US Plug) 12 Inch Touch Screen Plug-in Patient Monitor Multi-parameter Modular ECG NIBP RESP TEMP SPO2 PR

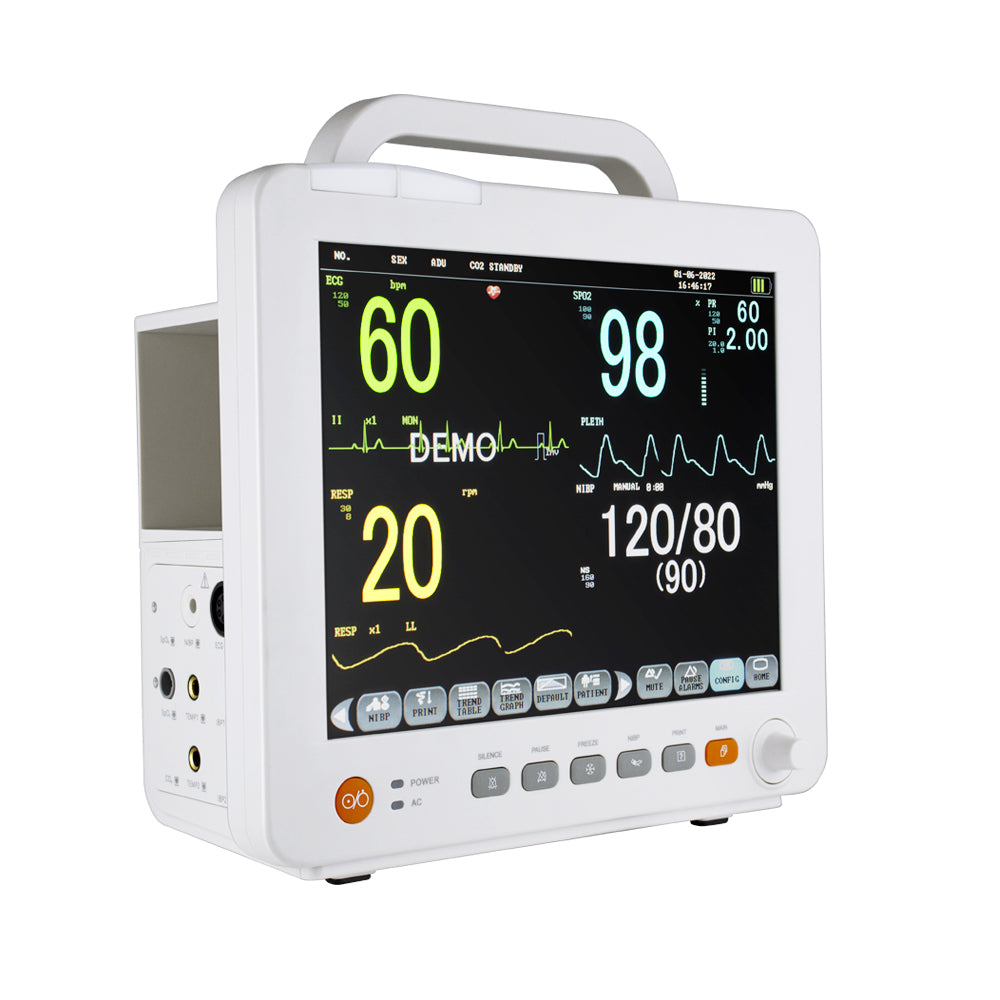

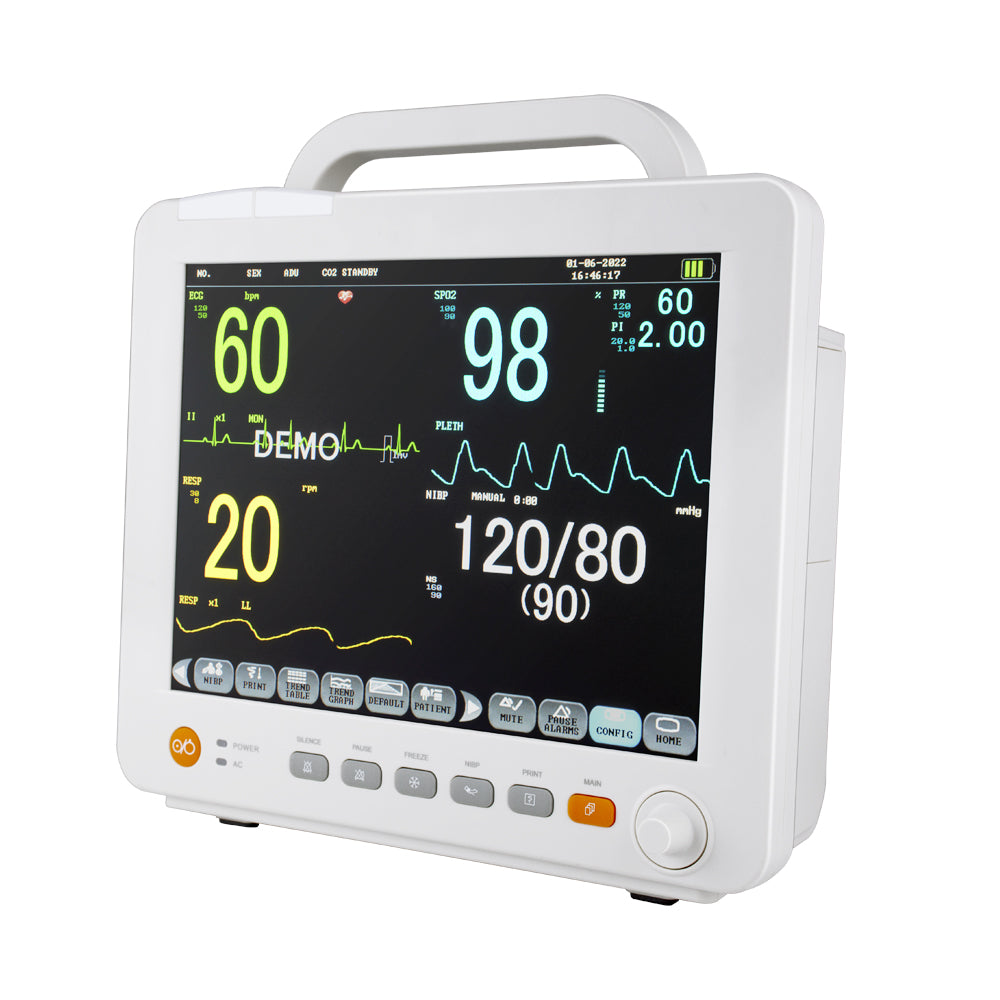

• High-Resolution Touch Screen: Navigate effortlessly with a 12" TFT LCD touch screen, ensuring ease of use and convenience.
• Versatile Operating Modes: Choose from Neonatal, Pediatric, or Adult modes to suit diverse patient needs.

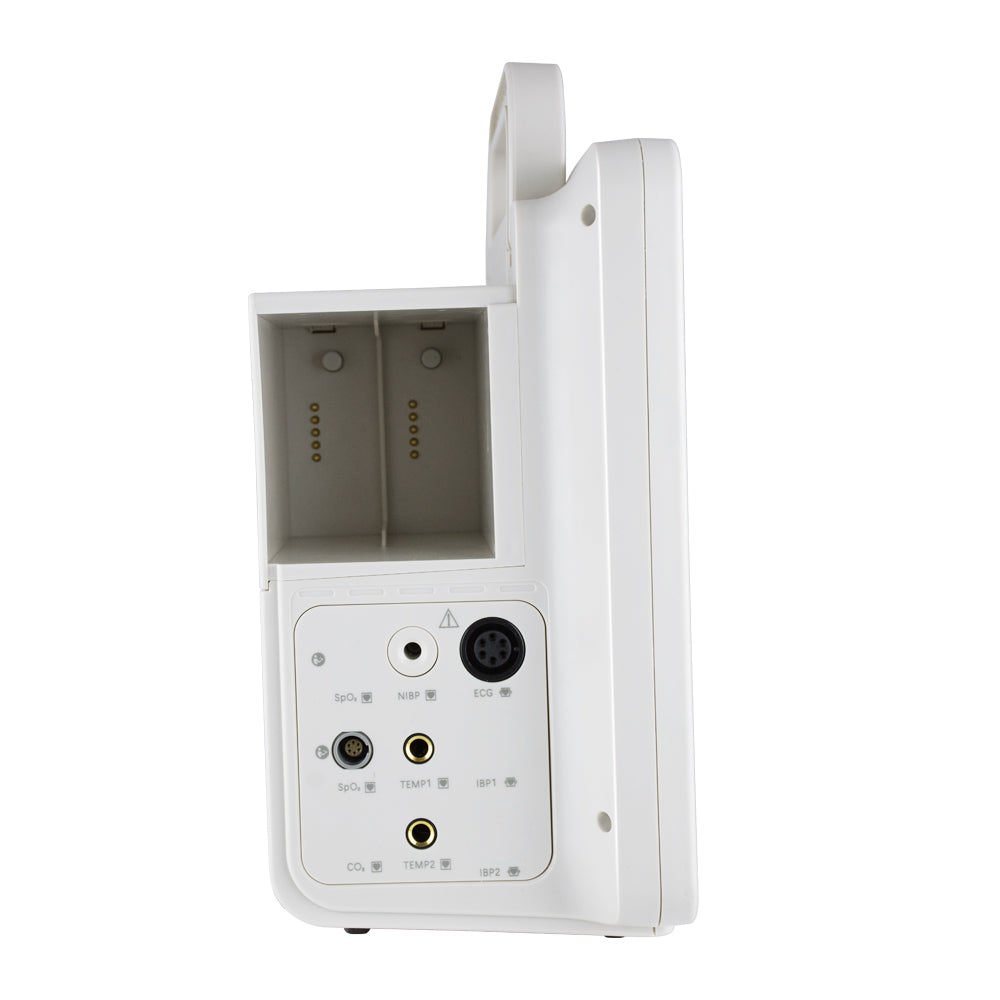

• Flexible Modular Design: Customize configurations with modular flexibility, catering to various departmental requirements seamlessly.
• Multilingual Interface: Support for up to 16 languages ensures accessibility and ease of operation for global users.
• Real-Time Arrhythmia Analysis: Stay informed with ST segment arrhythmia analysis in real-time, enhancing patient monitoring accuracy.
• Long-lasting Performance: Built-in rechargeable lithium battery ensures continuous operation for uninterrupted patient care.
• Seamless Integration: Connect to central monitoring systems via wired or wireless networks, enabling comprehensive network monitoring.
• Wide Application Range: Ideal for internal medicine, dental practices, surgery centers, obstetrics, pediatrics, emergency, ICU, and CCU departments.
• Standard Parameters: ECG, RESP, NIBP, SPO2, TEMP, PR.
• Optional Features: Dual IBP , CO2.

Specifications:

ECG

Lead Mode:5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection:I, II, III, avR, avL, avF, V,

Waveform:2 ch

Lead mode:3 Leads ( R, L, F or RA, LA, LL)

Lead selection:I, II, III,

Waveform:1 ch

Gain:´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV, auto

HR and Alarm

Range:

Adult:15 ~ 300 bpm

Neo/Ped:15 ~ 350 bpm

Accuracy:± 1% or ± 1bpm,which great

Resolution:1 bpm

Sensitivity:> 200 (uV P-P)

Differential Input Impedance:> 5 MΩ

RESPARATION:

Method:Impedance between R-F(RA-LL)

Differential Input Impedance:>2.5 MΩ

Measuring Impedance Range:0.3~5.0Ω

Base line Impedance Range:0 – 2.5  KΩ

Bandwidth:0.3 ~ 2.5 Hz

Resp. Rate

Measuring and Alarm Range

Adult:0 ~ 120 rpm

Neo/Ped:0 ~ 150 rpm

Resolution:1 rpm

Accuracy:±2 rpm

Apean Alarm:10 ~ 40 S

NIBP

Method:Oscillometric

Mode:Manual, Auto, STAT

Measuring Interval in AUTO Mode

 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)

Measuring Period in STAT Mode:5 Min

Pulse Rate Range:40 ~ 240 bpm

Alarm Type:SYS, DIA, MEAN

Measuring and alarm range:

Adult Mode

SYS :40 ~ 270 mmHg

DIA :10 ~ 215 mmHg

MEAN:20 ~ 235 mmHg

Pediatric Mode

SYS:40 ~ 200 mmHg

DIA:10 ~ 150 mmHg

MEAN:20 ~ 165 mmHg

Neonatal Mode

SYS:40 ~ 135 mmHg

DIA:10 ~ 100 mmHg

MEAN:20 ~ 110 mmHg

Overpressure Protection

Adult Mode:297±3 mmHg

Pediatric Mode:240±3 mmHg

Neonatal Mode:147±3 mmHg

SpO2

Measuring Range:0 ~ 100 %

Alarm Range:0 ~ 100 %

Resolution:1 %

Accuracy:

70% ~ 100%  ±2 %

0%  ~  69%  unspecified

Actualization interval:about 1 Sec.

Alarm Delay:10 Sec.

Pulse Rate

Measuring and Alarm Range:0~254bpm

Resolution:1bpm

Accuracy:±2bpm

I.5TEMP measurement:

Channel:1

Measuring and Alarm Range:0 ~ 50 °C

Resolution:0.1°C

Accuracy:±0.1°C

Actualization interval:about 1 Sec.

Average Time Constant:< 10 Sec.

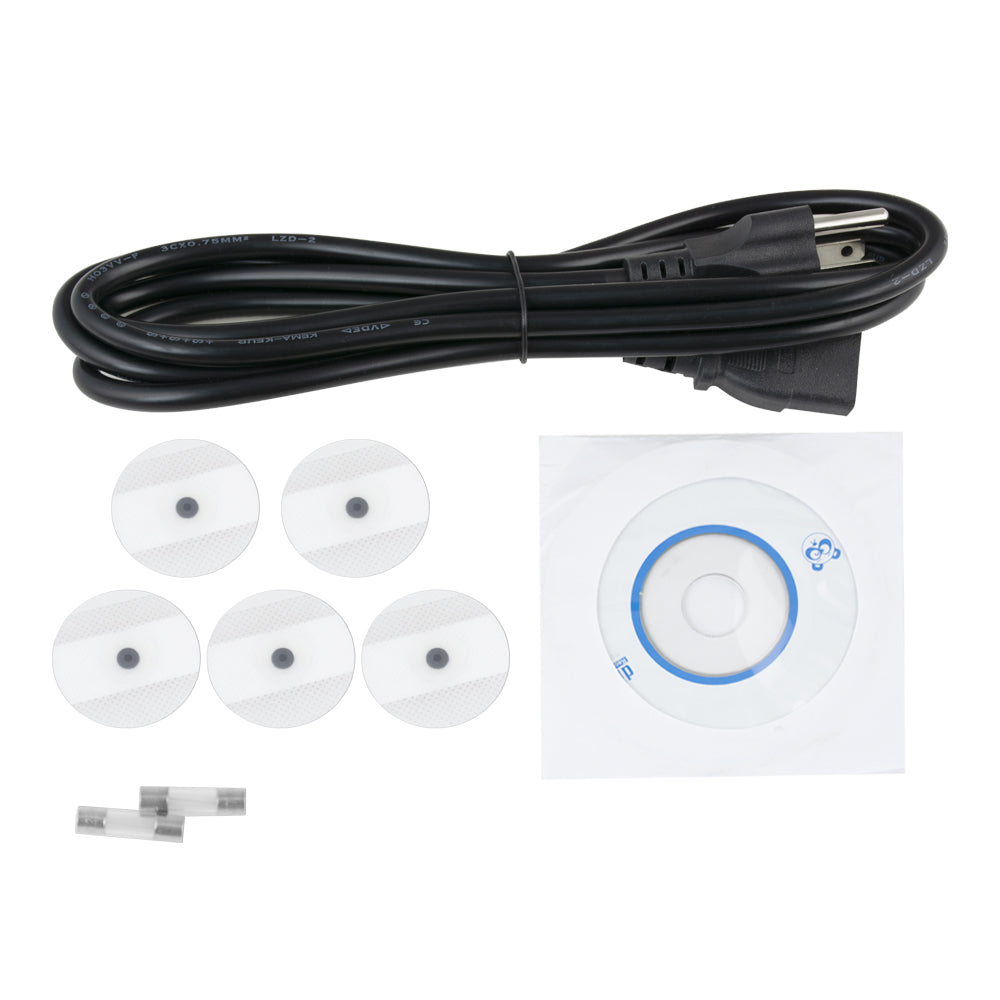

Package List:

1×Patient Monitor

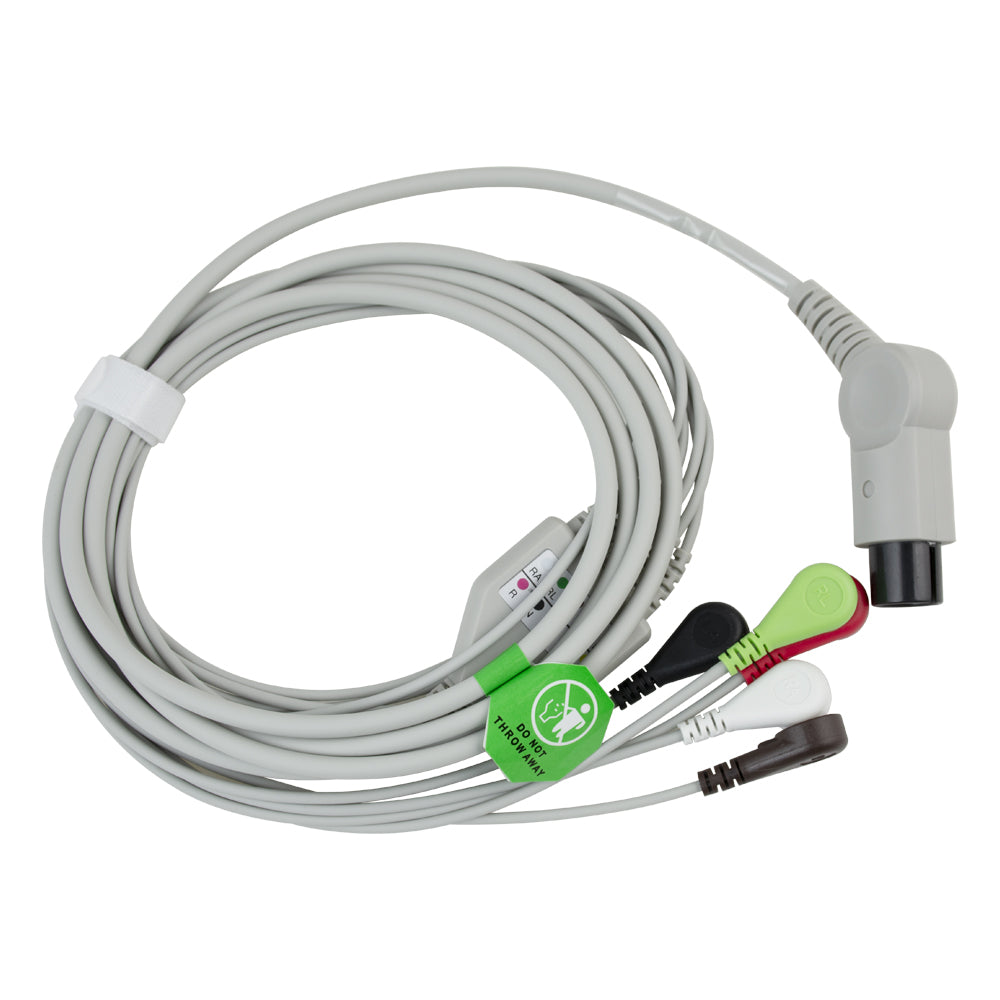

1×EKG Lead wire

1×NIBP Cuff

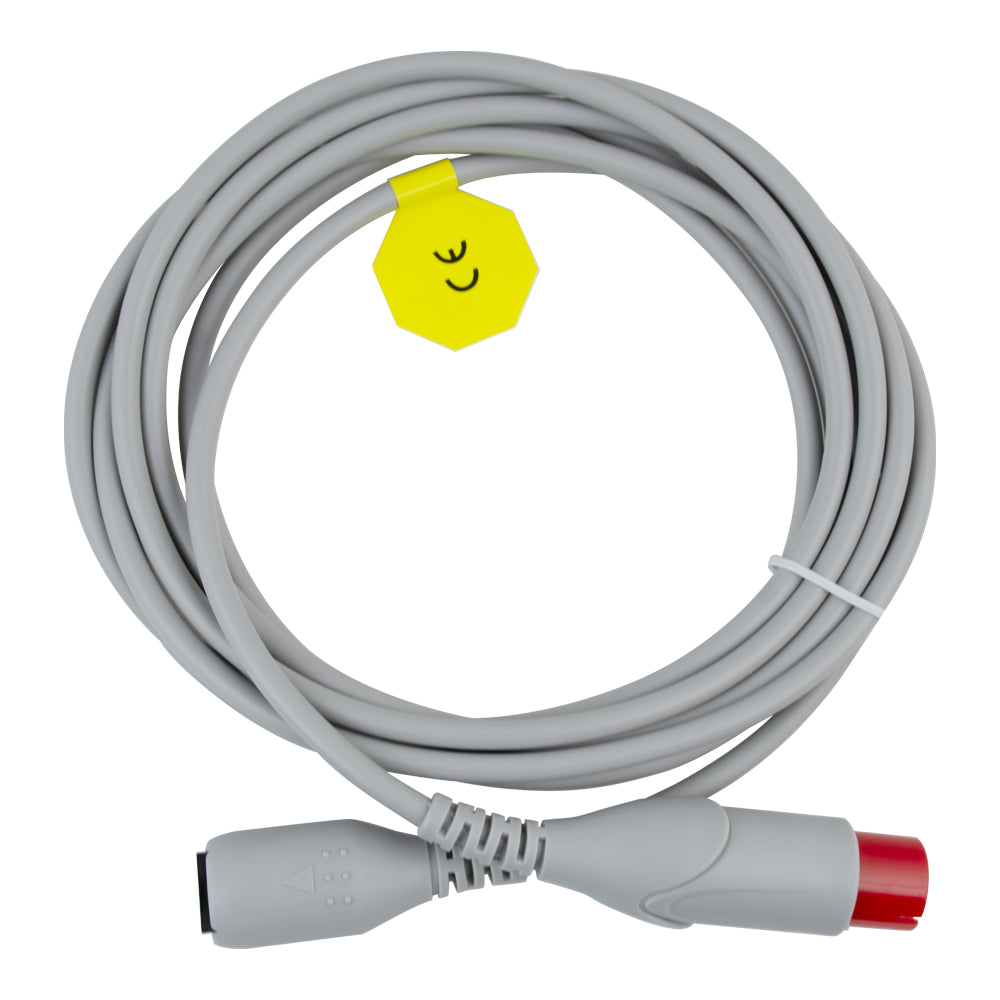

1×NIBP Extension Cable

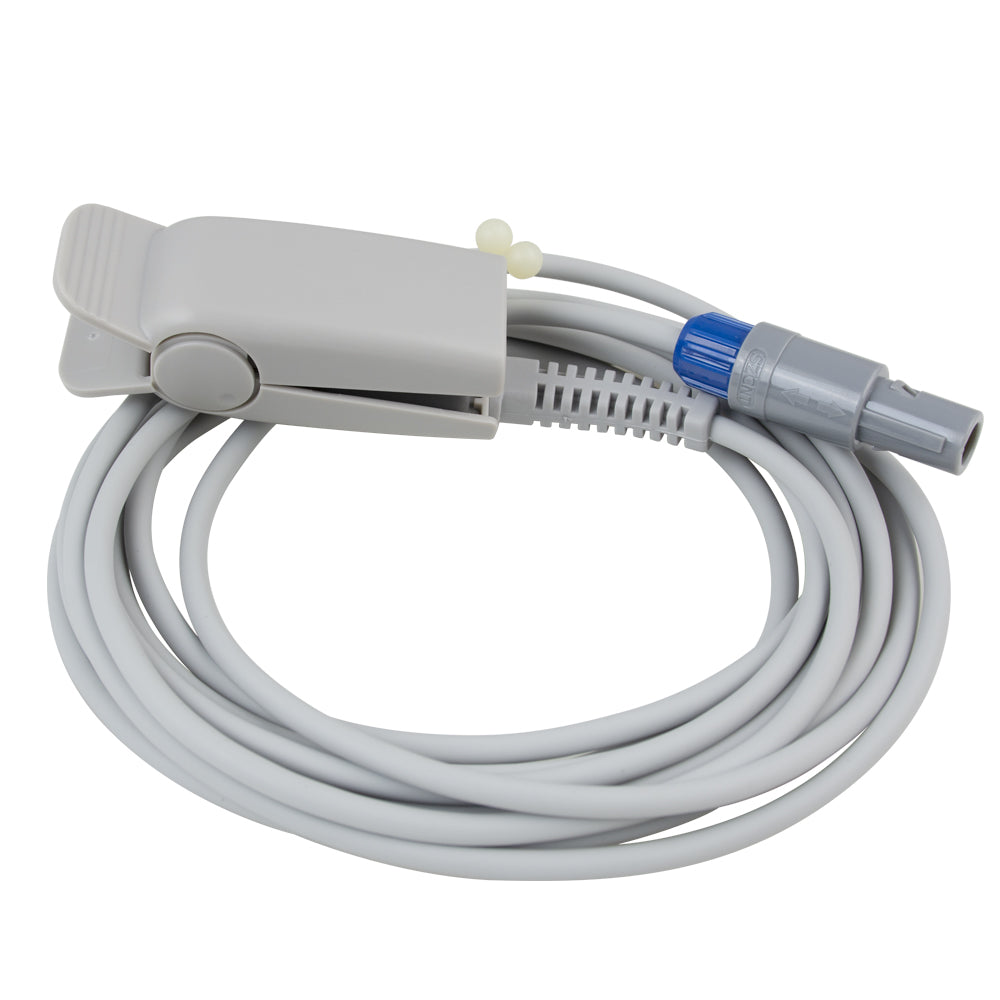

1×SpO2 Sensor

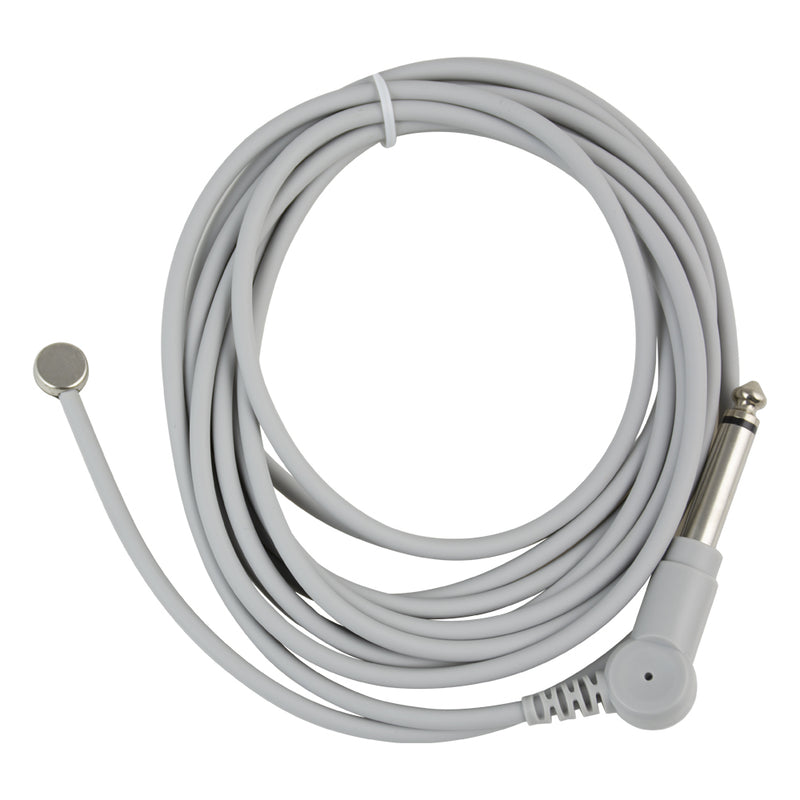

1×Temp Sensor

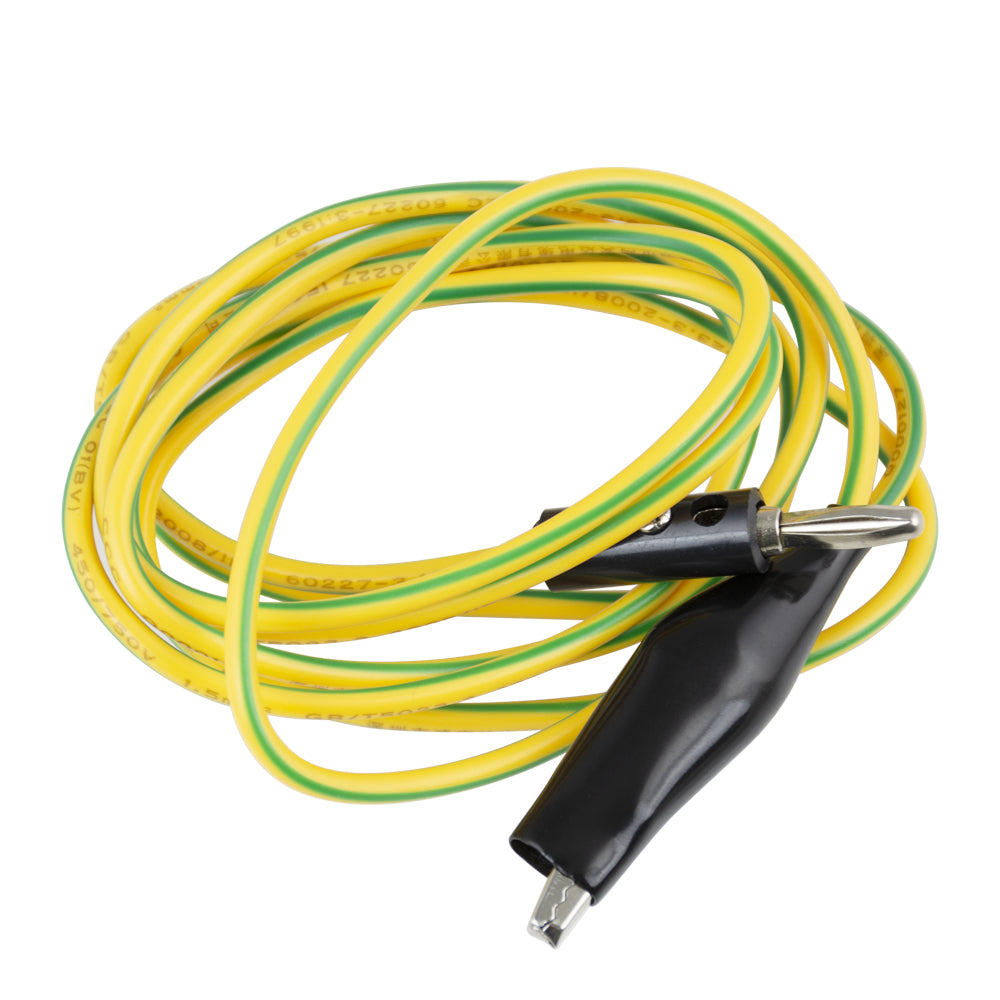

1×Ground Cable

5×Electrode

1×User Manual(CD)
