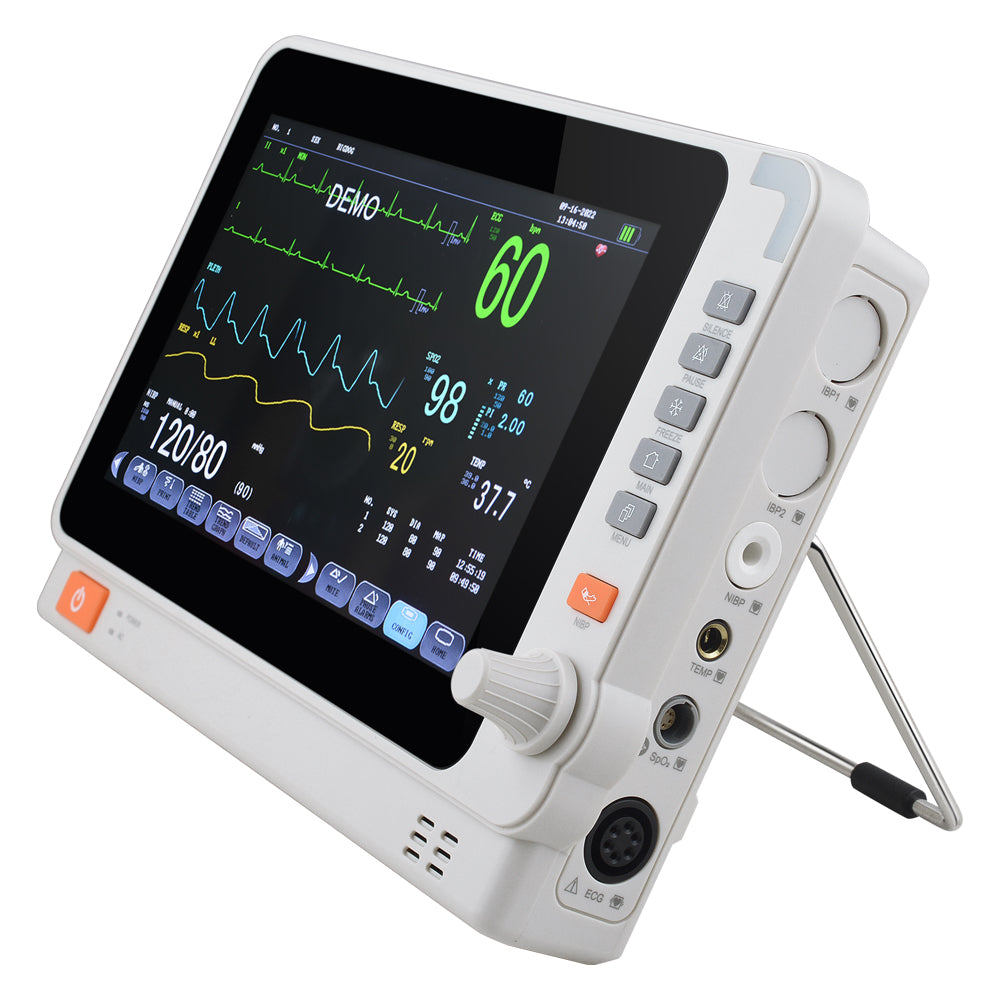

10 inch Screen VET Veterinary Patient Monitor Multi-parameter Vital Signs ECG NIBP RESP TEMP SPO2 PR

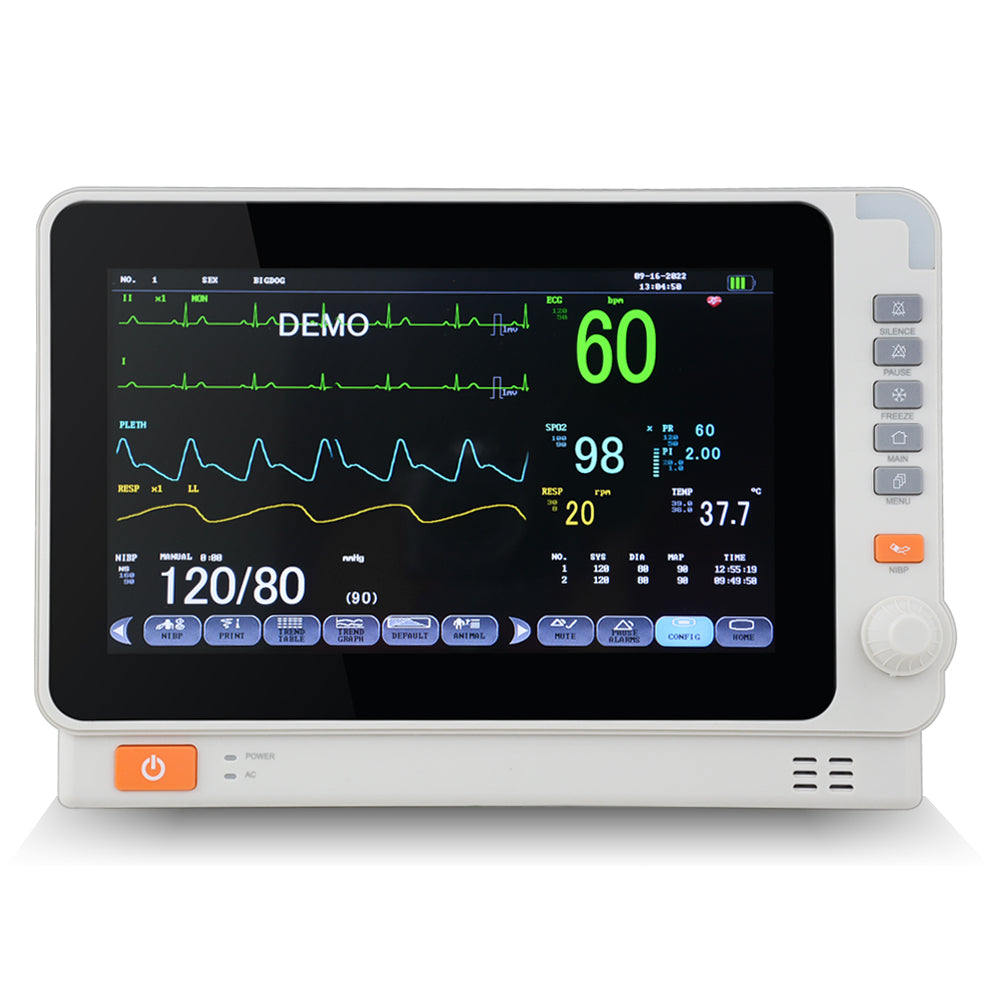

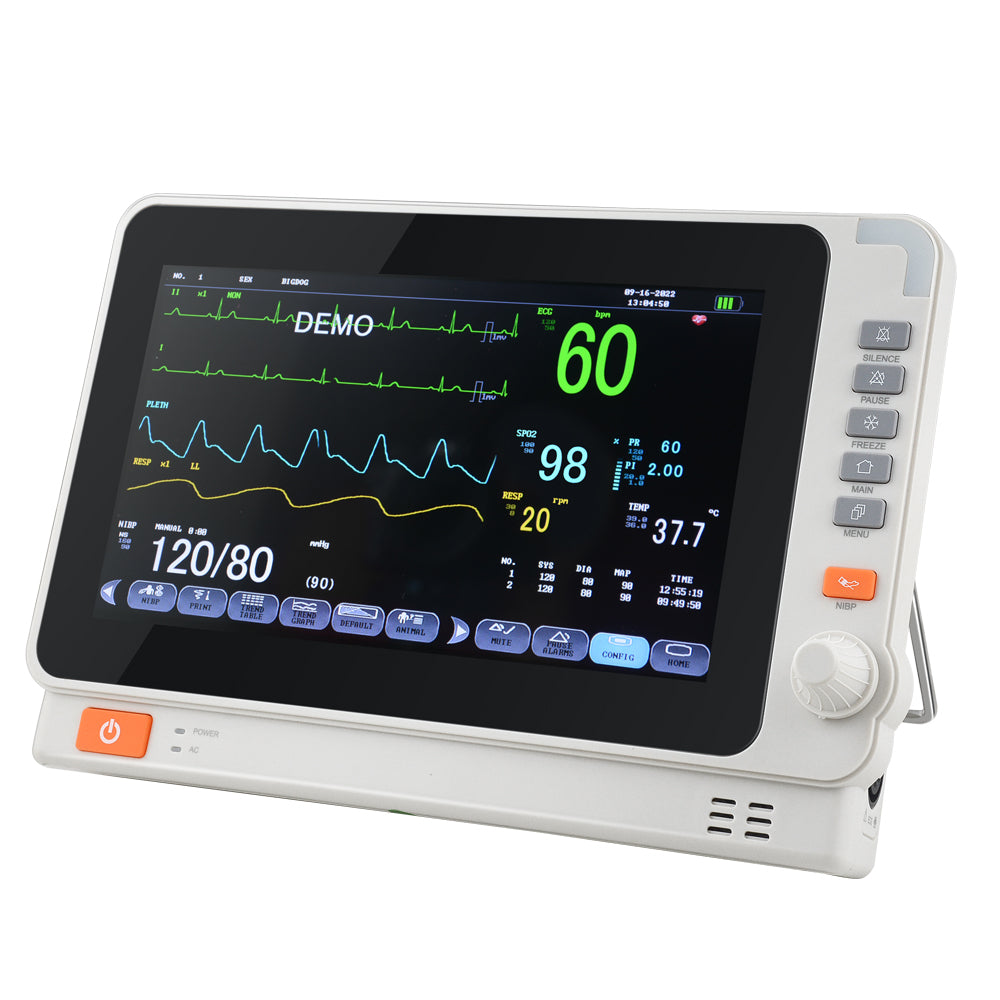

• Enhanced Display: Featuring a 10-inch high-resolution TFT display, easily view vital signs for efficient monitoring of cats, dogs, and other animals.
• Customizable Alarms: Set alarm limits as needed, with automatic sound and light alerts for immediate attention.
• Enhanced Safety Features: Benefit from anti-movement, anti-defibrillation, and anti-electrosurgical interference, ensuring reliable monitoring in any environment.
• Advanced Functionality: Includes drug solubility calculation and arrhythmia analysis functions for comprehensive patient assessment.
• Quiet and Energy-Saving Design: Enjoy fanless operation, reducing noise and energy consumption while maintaining a clean environment to minimize cross-infection risks.
• Long-lasting Power: Equipped with a built-in lithium battery and AC/DC support, ensuring continuous monitoring even during power outages.

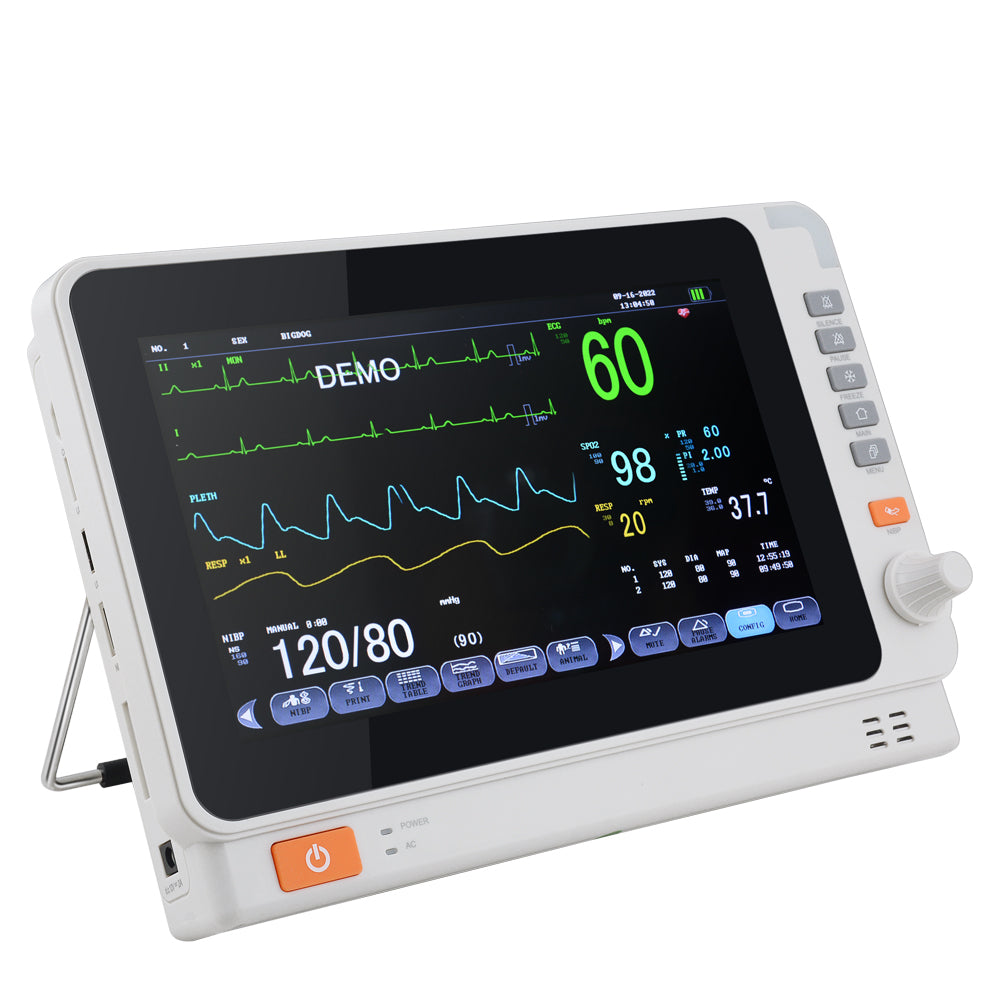

• Portable and Ergonomic: Designed with a classical handle for easy transfer, this monitor offers flexibility and convenience in veterinary settings.

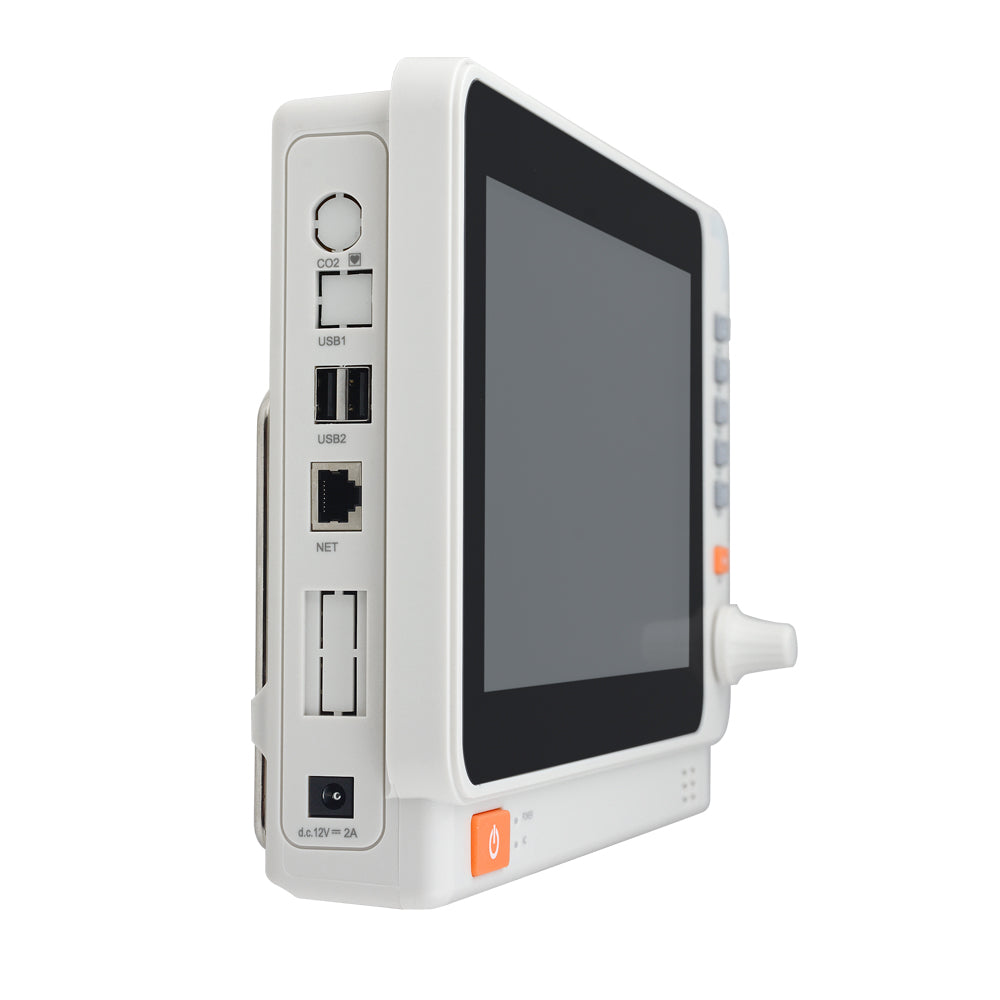

• Network Connectivity: Easily connect to central monitoring systems via wired networks, enabling comprehensive network monitoring solutions.
• Versatile Application: Widely used in animal clinics and hospitals, suitable for monitoring cats, canines, and other large animals.

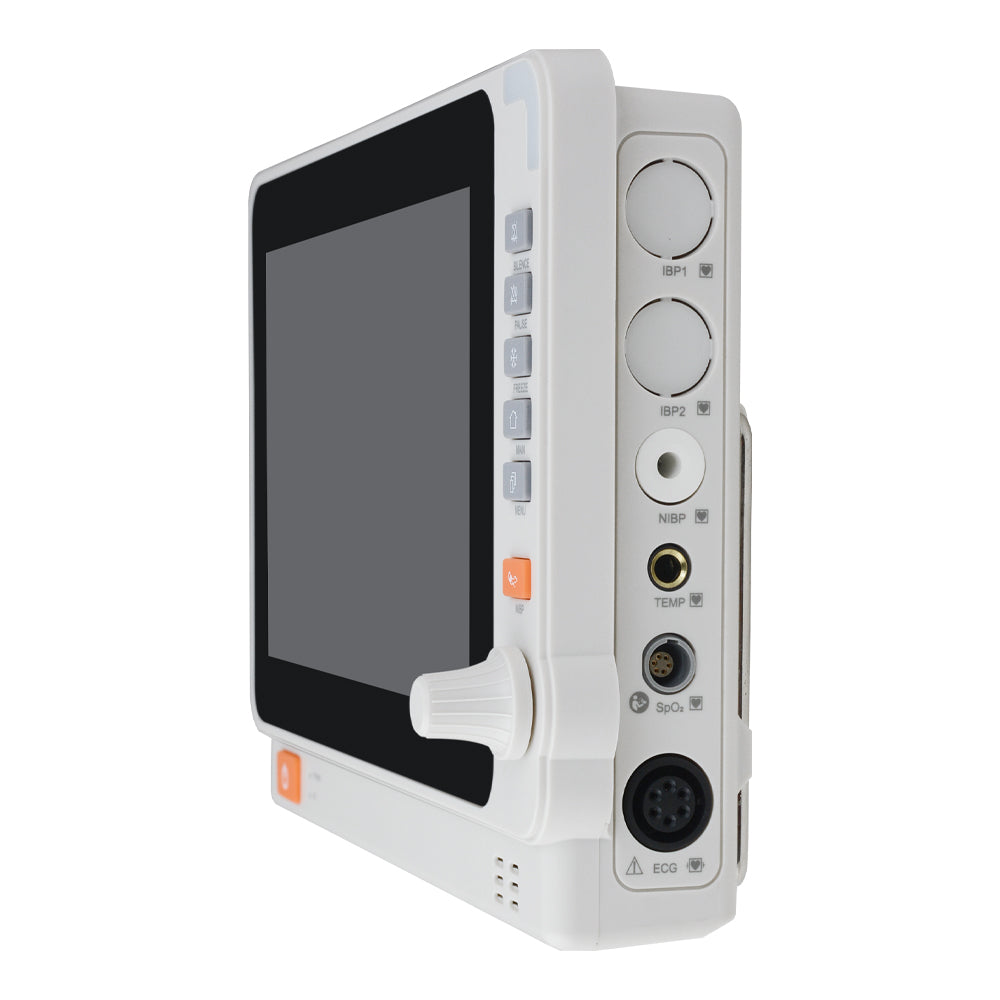

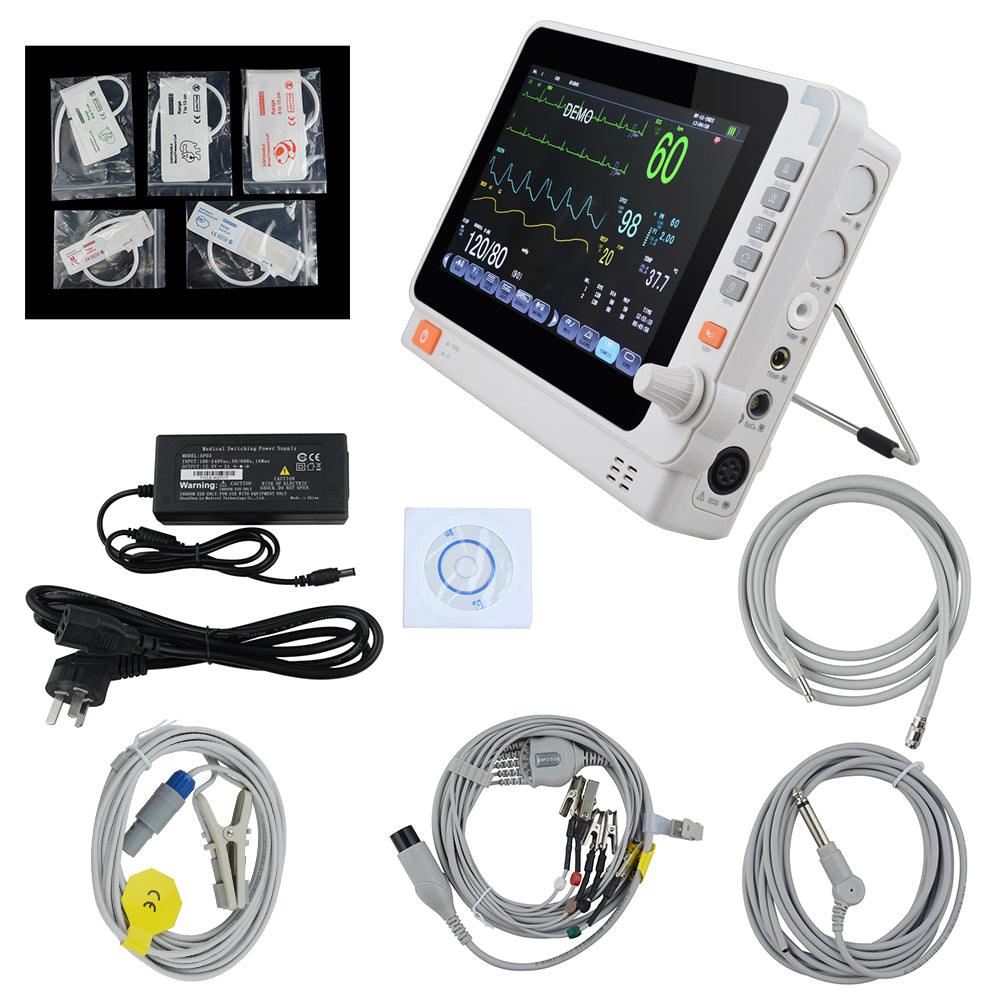

Standard configuration:

ECG, NIBP, SPO2, TEMP, RESP,PR

Specification:

ECG

Lead Mode:5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection:I, II, III, avR, avL, avF, V,

Waveform:2 ch

Lead mode:3 Leads ( R, L, F or RA, LA, LL)

Lead selection:I, II, III,

Waveform:1 ch

Gain:´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV, auto

HR and Alarm

Range:

Adult:15 ~ 300 bpm

Neo/Ped:15 ~ 350 bpm

Accuracy:± 1% or ± 1bpm,which great

Resolution:1 bpm

Sensitivity:> 200 (uV P-P)

Differential Input Impedance:> 5 MΩ

RESPARATION:

Method:Impedance between R-F(RA-LL)

Differential Input Impedance:>2.5 MΩ

Measuring Impedance Range:0.3~5.0Ω

Base line Impedance Range:0 – 2.5  KΩ

Bandwidth:0.3 ~ 2.5 Hz

Resp. Rate

Measuring and Alarm Range

Adult:0 ~ 120 rpm

Neo/Ped:0 ~ 150 rpm

Resolution:1 rpm

Accuracy:±2 rpm

Apean Alarm:10 ~ 40 S

NIBP

Method:Oscillometric

Mode:Manual, Auto, STAT

Measuring Interval in AUTO Mode

 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)

Measuring Period in STAT Mode:5 Min

Pulse Rate Range:40 ~ 240 bpm

Alarm Type:SYS, DIA, MEAN

Measuring and alarm range:

Adult Mode

SYS :40 ~ 270 mmHg

DIA :10 ~ 215 mmHg

MEAN:20 ~ 235 mmHg

Pediatric Mode

SYS:40 ~ 200 mmHg

DIA:10 ~ 150 mmHg

MEAN:20 ~ 165 mmHg

Neonatal Mode

SYS:40 ~ 135 mmHg

DIA:10 ~ 100 mmHg

MEAN:20 ~ 110 mmHg

Overpressure Protection

Adult Mode:297±3 mmHg

Pediatric Mode:240±3 mmHg

Neonatal Mode:147±3 mmHg

SpO2

Measuring Range:0 ~ 100 %

Alarm Range:0 ~ 100 %

Resolution:1 %

Accuracy:

70% ~ 100%  ±2 %

0%  ~  69%  unspecified

Actualization interval:about 1 Sec.

Alarm Delay:10 Sec.

Pulse Rate

Measuring and Alarm Range:0~254bpm

Resolution:1bpm

Accuracy:±2bpm

I.5TEMP measurement:

Channel:1

Measuring and Alarm Range:0 ~ 50 °C

Resolution:0.1°C

Accuracy:±0.1°C

Actualization interval:about 1 Sec.

Average Time Constant:< 10 Sec.
