Description
Features:
- Ergonomic & Portable Design: Convenient for use in various healthcare settings.

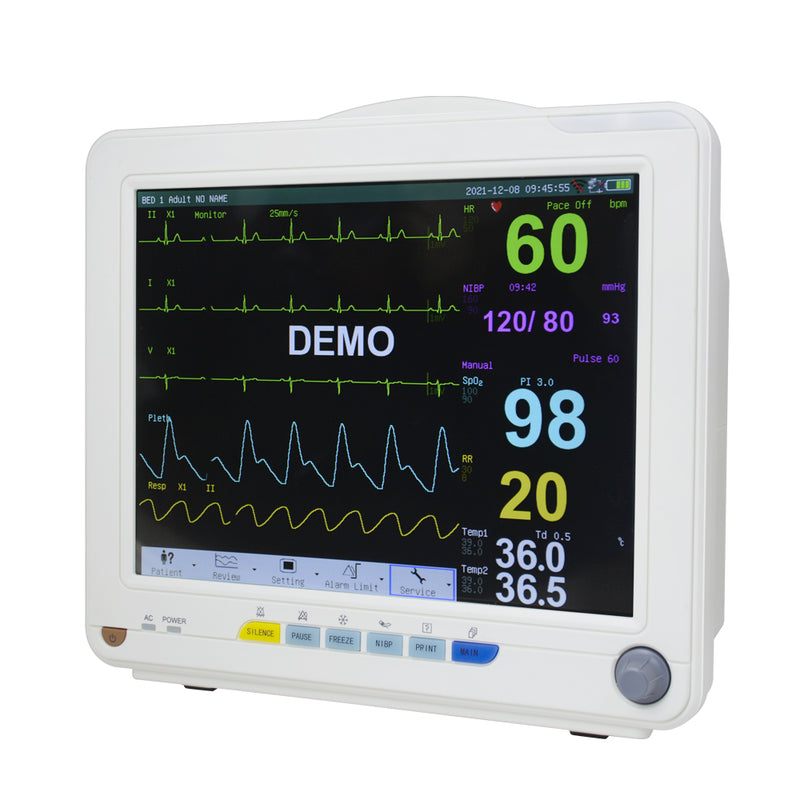

- Enhanced Visibility: 12" TFT display configurable up to 8 waveforms for maximum data visibility.
- Accurate SPO2 Technology: Works accurately during motion and low perfusion, ensuring reliable monitoring.
- Interference Resistant: Anti AC & high-frequency electrosurgical interference, and defibrillator's interference.

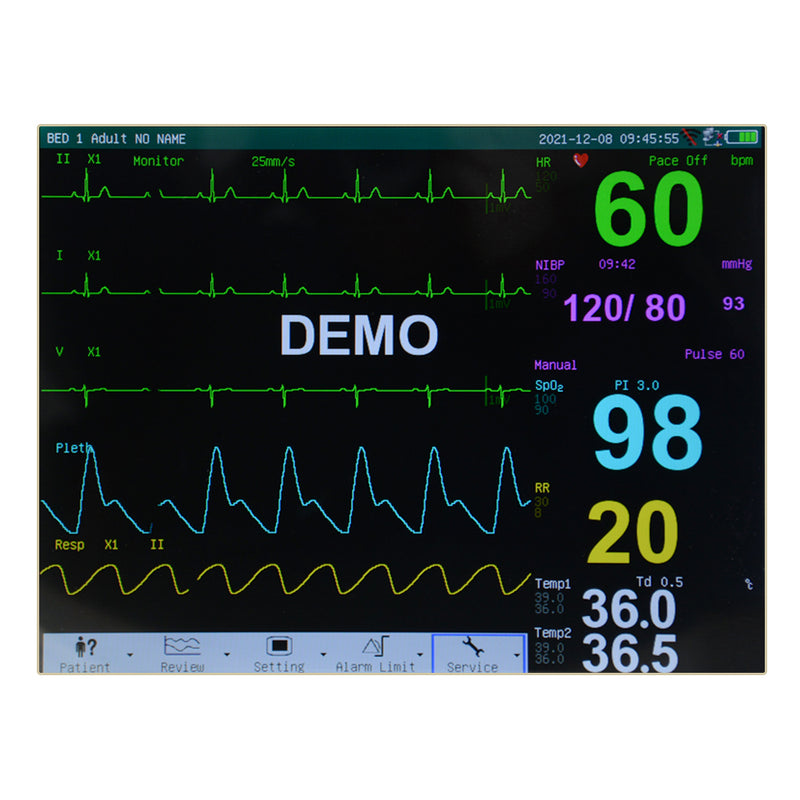

- Rich Screen Layout: Standard, large font, trend graph, OxyCRG, ECG full lead, and more.
- Robust Data Storage: Stores 720 hours of trends, 10,000 group NIBP, and 1,024 alarm events.
- Advanced Analysis: ST analysis, arrhythmia analysis, pacemaker analysis, drug analysis, and calculation.
- Customizable Alarms: Audible & visual alarms adjustable to suit individual needs.
- Patient Information Management: Simplifies patient data management.
- Versatile Software: Suitable for NICU, ICU, OR, CCU, or standard patient rooms.
- Easy Upgrades: Optional software upgrades based on USB.
- Networking Capabilities: Wired/wireless networking with central monitoring systems for up to 64 beds.
- Thermal Recorder: Built-in 3 trace thermal recorder for printing real-time and historical data.
- Multi-language Support: Supports English, Spanish, Turkish, and more.
- Long-lasting Battery: Super long life rechargeable Lithium battery provides up to 4 hours of working time.
- Suitable for All: Suitable for adult, pediatric, and neonate patients.
Standard configuration:
- ECG, NIBP, SPO2, TEMP, RESP, PR, Rechargeable Lithium battery
Optional:
- Dual TEMP
- Dual IBP
- ETCO2 (side stream)
- Thermal recorder
- Wall mount
- Trolley
Specification:
ECG
Full lead: I, II, III, AVL, AVR, AVF and V
Gain: 5mm/mV, 10mm/mV, 15mm/mV, 20mm/mV and 25mm/mV
Scanning speed: Changeable with three grades of 12.5mm/s, 25mm/s and 50mm/s
Band width: 0.05Hz-100Hz(3dB)
Heart rate:
Scope: 15 times/minute to 300 times/minutes
Accuracy: ±1 time/minute
Variation of heart beat LORENZE drawing: Analysis on heart beat data for the current 5 minutes with histogram during RR period.
Arrhythmia: Twenty kinds of common abnormal ECG can be analyzed, with ECG data of 1000 times of arrhythmia kept and with 10 seconds kept for each time.
Accuracy: Error rate < 20%
Undetected rate < 20%
ST section
Scope: ±0.8mV
Precision : ＜ ±0.05mV
Gain: 5mm/mV, 10mm/mV, 15mm/mV, 20mm/mV and 25mm/mV
Scanning speed: Changeable with three grades of 12.5mm/s, 25mm/s and 50mm/s
Band width: 0.05Hz-100Hz(3dB)
Heart rate:
Scope: 15 times/minute to 300 times/minutes
Accuracy: ±1 time/minute
Variation of heart beat LORENZE drawing: Analysis on heart beat data for the current 5 minutes with histogram during RR period.
Arrhythmia: Twenty kinds of common abnormal ECG can be analyzed, with ECG data of 1000 times of arrhythmia kept and with 10 seconds kept for each time.
Accuracy: Error rate < 20%
Undetected rate < 20%
ST section
Scope: ±0.8mV
Precision : ＜ ±0.05mV
SpO2
Detection scope: 0%-100%
Accuracy ±1% 90%-100%
±2% 70%-89%
Accuracy ±1% 90%-100%
±2% 70%-89%
NIBP
Theory Electric oscillator
Cuff gassing time less than 15 seconds
First-time gassing pressure: dynamic state 24kPa（180 mmHg）
Manual selection: 9.3kPa（70 mmHg），13.3kPa（100 mmHg），16.0kPa（120 mmHg）
18.6kPa（140 mmHg），20.0kPa（150 mmHg），21.3kPa（160 mmHg），
Automatic detection period: 1 minute to 240 minutes
Stop size：1 min（1 min -10min）, 5min(10 min -30min), 10min(30 m
in -90min) and 30min（90 min -240min）
Detection scope:
Systolic blood pressure: 4kPa -34kPa(30mmHg -255mmHg)
Diastolic pressure 2kPa -29.3kPa(15mmHg -220mmHg)
Mean pressure 2.7kPa～31.3kPa （20mmHg～235mmHg）
Detection accuracy
Static pressure: ±3mmHg
Pulse rate: ±2%
Cuff gassing time less than 15 seconds
First-time gassing pressure: dynamic state 24kPa（180 mmHg）
Manual selection: 9.3kPa（70 mmHg），13.3kPa（100 mmHg），16.0kPa（120 mmHg）
18.6kPa（140 mmHg），20.0kPa（150 mmHg），21.3kPa（160 mmHg），
Automatic detection period: 1 minute to 240 minutes
Stop size：1 min（1 min -10min）, 5min(10 min -30min), 10min(30 m
in -90min) and 30min（90 min -240min）
Detection scope:
Systolic blood pressure: 4kPa -34kPa(30mmHg -255mmHg)
Diastolic pressure 2kPa -29.3kPa(15mmHg -220mmHg)
Mean pressure 2.7kPa～31.3kPa （20mmHg～235mmHg）
Detection accuracy
Static pressure: ±3mmHg
Pulse rate: ±2%
Resp
Chest impedance method or concentration of carbon dioxide at end of respiration
Scope of chest impedance method 0 time/minute – 100 minutes/minute
Precision of chest impedance method time/minute
Detection scope of carbon oxygen at end of respiration 3mmHg-75mmHg； 0.4%vol-9.9%vol
Detection scope of respiration rate: 2 times/minute ->60 times/minute（including baby）
Detection precision of respiration rate: ±1 time/minute
Scope of chest impedance method 0 time/minute – 100 minutes/minute
Precision of chest impedance method time/minute
Detection scope of carbon oxygen at end of respiration 3mmHg-75mmHg； 0.4%vol-9.9%vol
Detection scope of respiration rate: 2 times/minute ->60 times/minute（including baby）
Detection precision of respiration rate: ±1 time/minute
Temp
Single/double path
Type: Vascular/surface temperature
Scope: 20℃～50℃
Accuracy: ±0.2℃
Type: Vascular/surface temperature
Scope: 20℃～50℃
Accuracy: ±0.2℃
Invasive blood pressure (optional)
Single/double path
Type: direct and continuous detection
Scope: -6.67kPa(-50mmHg)—46.67kPa(350mmHg)
Precision: below 13.33kPa(100mmHg) ±0.27kPa(2mmHg) 13.33k
Pa(100mmHg) above ±2%
Frequency response：DC-12Hz
Input resistance: not less than 500kΩ
Sensitivity of sensor: 5μV/V/mmHg
Motivation voltage：5V (DC)
Accuracy of sensor: ±2％Isolation voltage: 4 kV
Type: direct and continuous detection
Scope: -6.67kPa(-50mmHg)—46.67kPa(350mmHg)
Precision: below 13.33kPa(100mmHg) ±0.27kPa(2mmHg) 13.33k
Pa(100mmHg) above ±2%
Frequency response：DC-12Hz
Input resistance: not less than 500kΩ
Sensitivity of sensor: 5μV/V/mmHg
Motivation voltage：5V (DC)
Accuracy of sensor: ±2％Isolation voltage: 4 kV

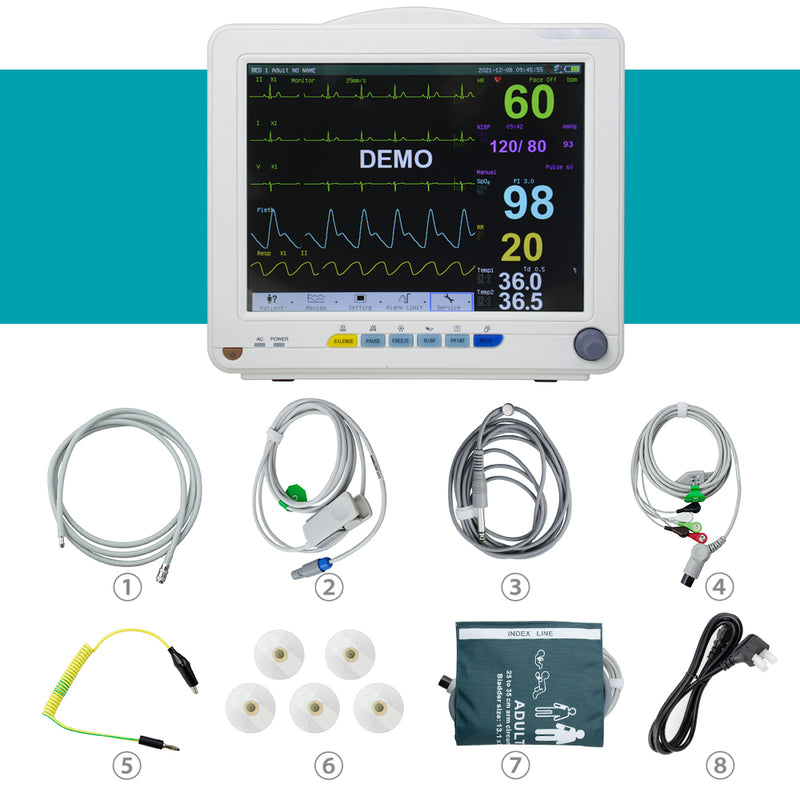

Packing List:
|
Iitem |
NO. |
Content |
Qty |
Remark |
|
Standard Configuration |
1 |
Main Unit |
1 |
|
|
2 |
Power cable |
1 |
|
|
|
3 |

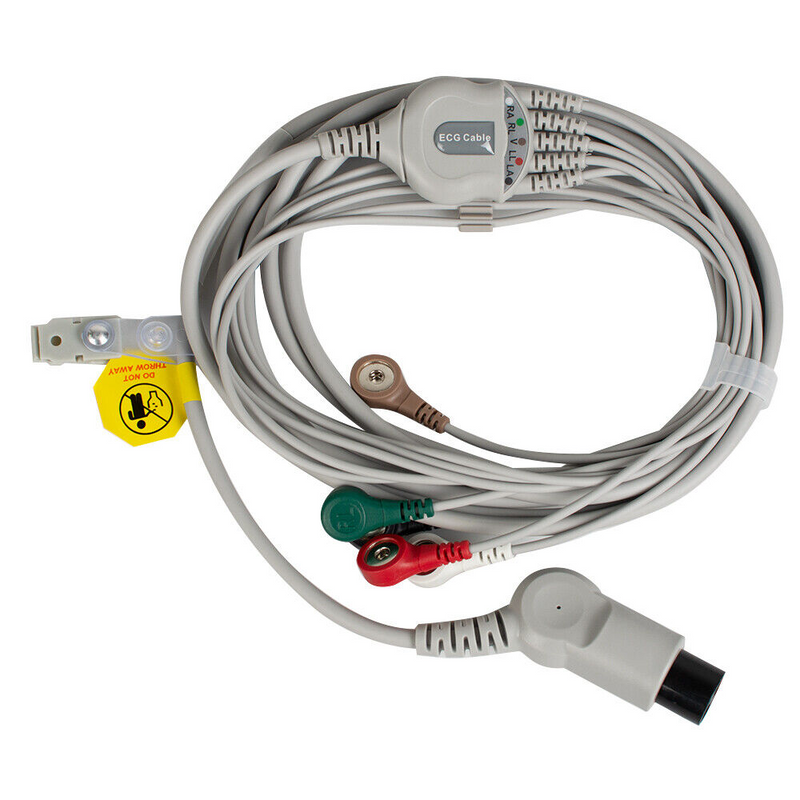

ECG Cable |
1 |
Integrated |
|
|
4 |

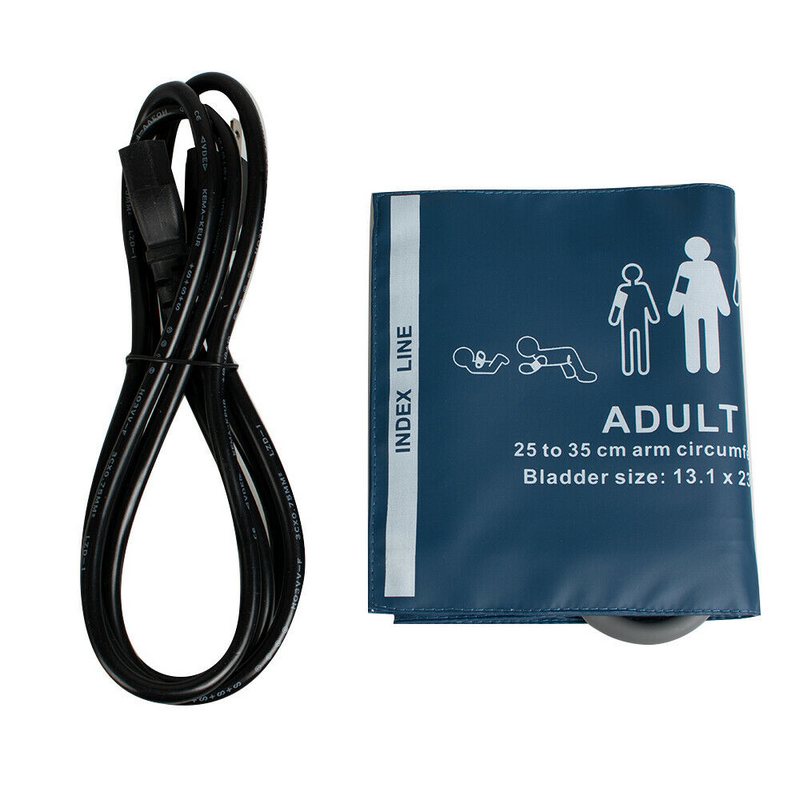

NIBP Cuff |
1 |
Adult |
|
|
5 |
External NIBP Hose |
1 |
|
|
|
6 |
SPO2 Probe |
1 |
|
|
|
7 |
Temperature Probe |
1 |
|
|
|
8 |
Disposable Electrodes |
1 |
|
|
|
9 |
Packing List |
1 |
|
|
|
10 |
Grounding wire |
1 |
|
